Name: 12 Core SC/APC Pigtail Connector: SC/APC Fiber Mode: OS2 9/125μm Fiber Count: 12 Fiber Grade: G.657.A1 Polish Type: APC Cable Diameter: 0.9 mm Cable Jacket: PVC/LSZH Insertion Loss: ≤0.3 dB Return Loss: ≥60 dB Length: 1m,1.5m or customized

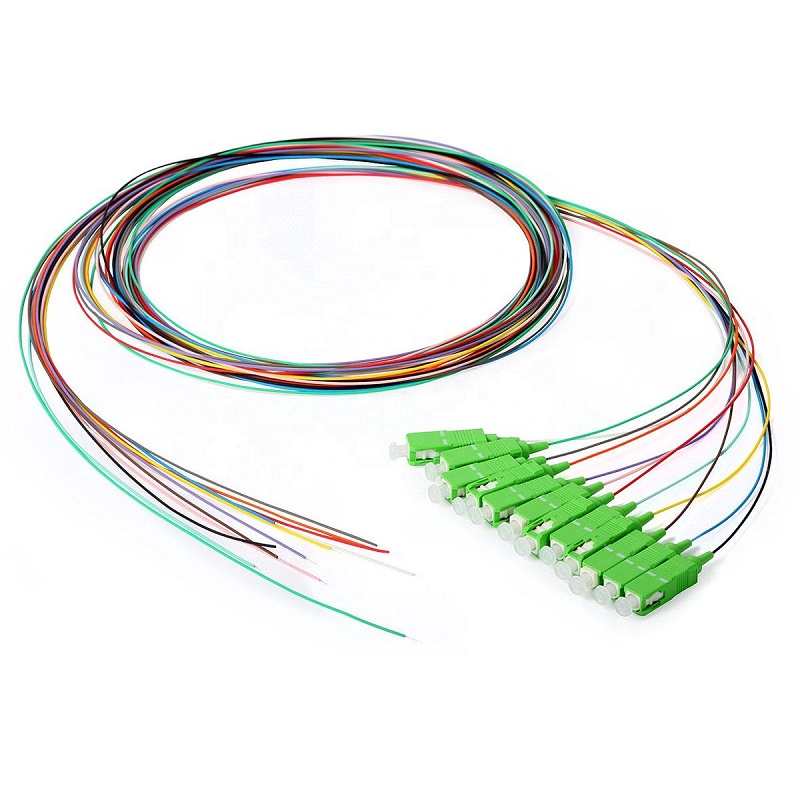

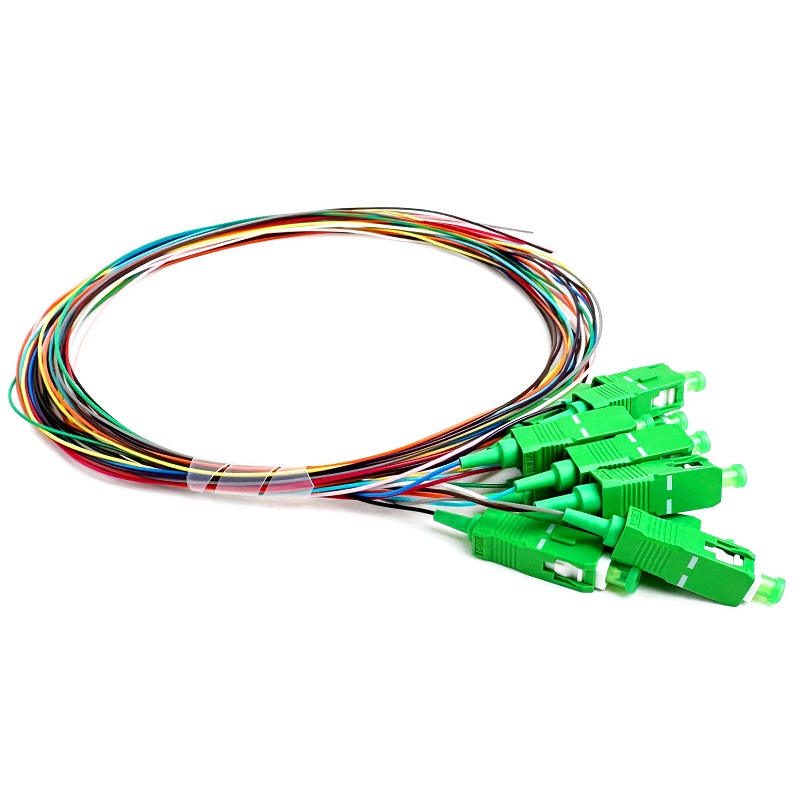

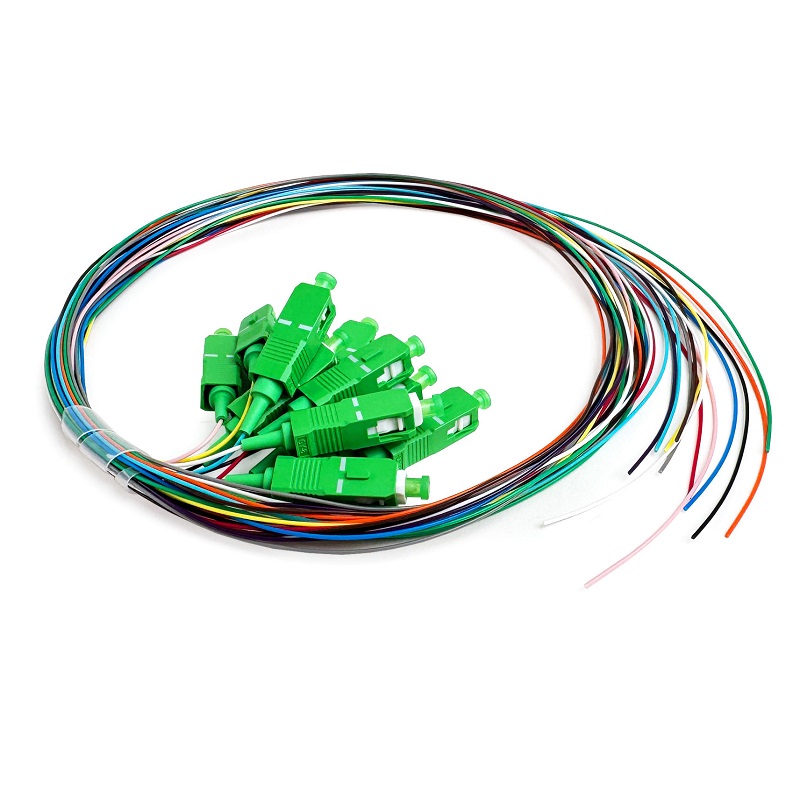

12Core Fiber Optic Pigtail SC APC Single Mode OS2 G657A 0.9mm Colored 1Meter FTTH Fiber Optic Cable
Description:
SC/APC 12-Core Fiber Optic Pigtail is a premium solution engineered for modern data centers, Fiber-to-the-Home (FTTH) networks, and demanding telecommunication infrastructures. Integrating twelve fibers into a single, compact bundle, it features low-loss APC connectors to maximize connection density and ensure superior signal integrity in space-constrained environments. This pigtail is the ideal choice for building stable and high-efficiency optical networks in patch panels, fiber terminal boxes, and various telecommunication equipment.
At Chengdu Focus Infra Materials Company, we offer a comprehensive range of fiber optic pigtails, designed to meet the needs of various industries. we are committed to delivering fiber optic components that meet the highest standards of performance and reliability. Our 12-core SC/APC pigtails are manufactured under strict quality control, ensuring consistency and longevity for your critical network infrastructure. They offer a perfect blend of high density, superior optical performance, and mechanical durability.
Application:
Data Center interconnections and server farms.
Fiber-to-the-x (FTTx) networks, including FTTH and FTTB.
Telecommunication Central Offices (CO) and distribution frames.
CATV and video transmission systems.
Passive Optical Networks (PON).Local Area Networks (LAN) & backbone cablin
| item | 12 Core SC/APC Pigtail |
| Model Number | SC/APC-12C |
| Type | Fiber Pigtails |
| Connector A | SC/APC |
| Fiber Mode | OS2 9/125μm |
| Fiber Count | 12 |
| Fiber Grade | G.657.A1 |
| Minimum Bend Radius | 10mm |
| Polish Type | APC |
| Cable Diameter | 0.9 mm |
| Cable Jacket | PVC/LSZH |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
