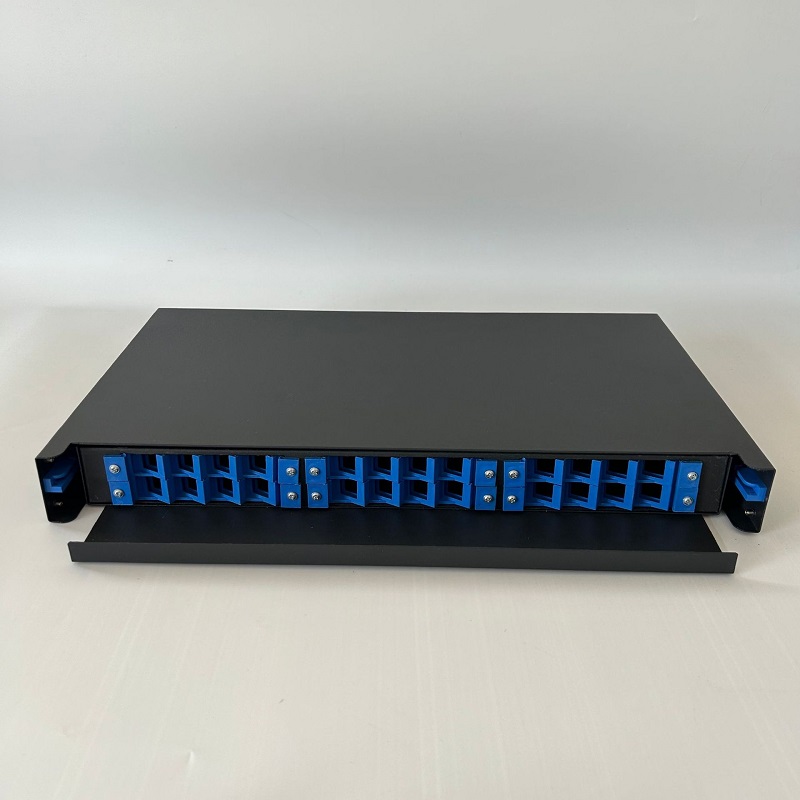

12/24/48 Port Rack-Mounted Pull-Out Fiber Optic Terminal Box
Chengdu Focus Infra Materials, a global leader in high-performance fiber optic components with 10000+ patents and 3 million sets of production equipment, proudly presents the Telecom Grade 12/24/48 Port Rack-Mounted Pull-Out Fiber Optic Terminal Box. Designed for carrier-grade telecom networks, data centers, FTTH backbone deployments, and enterprise fiber systems, this full-configured terminal box integrates splicing, termination, and protection functions in a compact, pull-out design—delivering reliable performance, easy maintenance, and seamless integration for large-scale fiber infrastructure projects worldwide.
As a professional manufacturer with standardized clean workshops, we engineer our rack-mounted pull-out terminal boxes to meet the rigorous demands of telecom operators, system integrators, and network builders. Available in 12-port, 24-port, and 48-port configurations, all fully equipped with high-quality components, this terminal box is the ideal solution for high-density fiber management in space-constrained telecom rooms and data centers.
Key Features:
Multiple Port Configurations: Available in 12-port, 24-port, and 48-port options, all fully configured with standard SC/LC/FC/ST adapters (UPC/APC optional), supporting 12-core, 24-core, and 48-core fiber termination and splicing. Perfectly matching the needs of small-to-large scale telecom projects, from enterprise backbones to FTTH central offices.

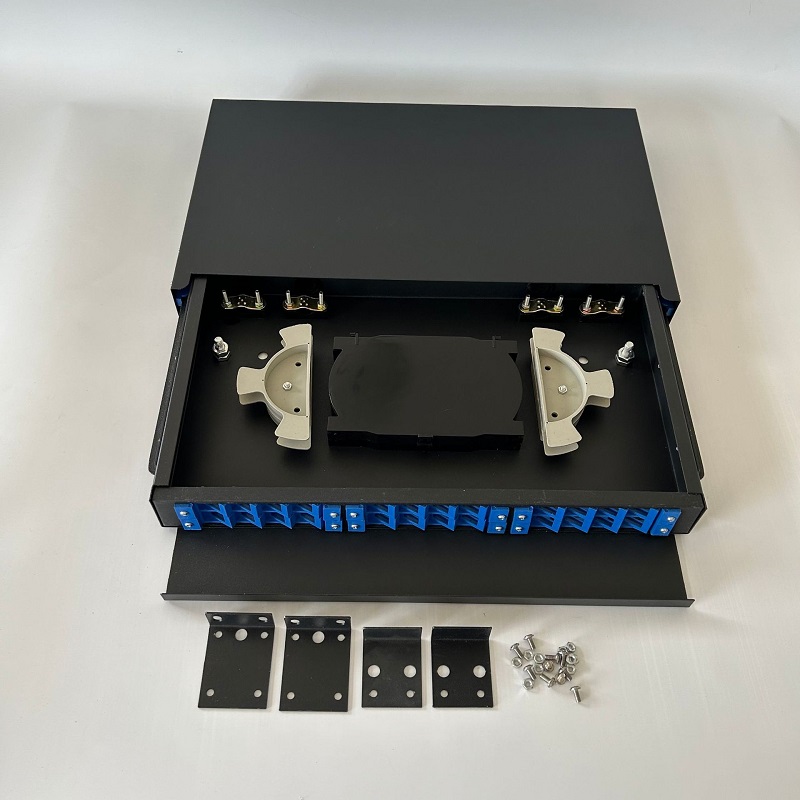

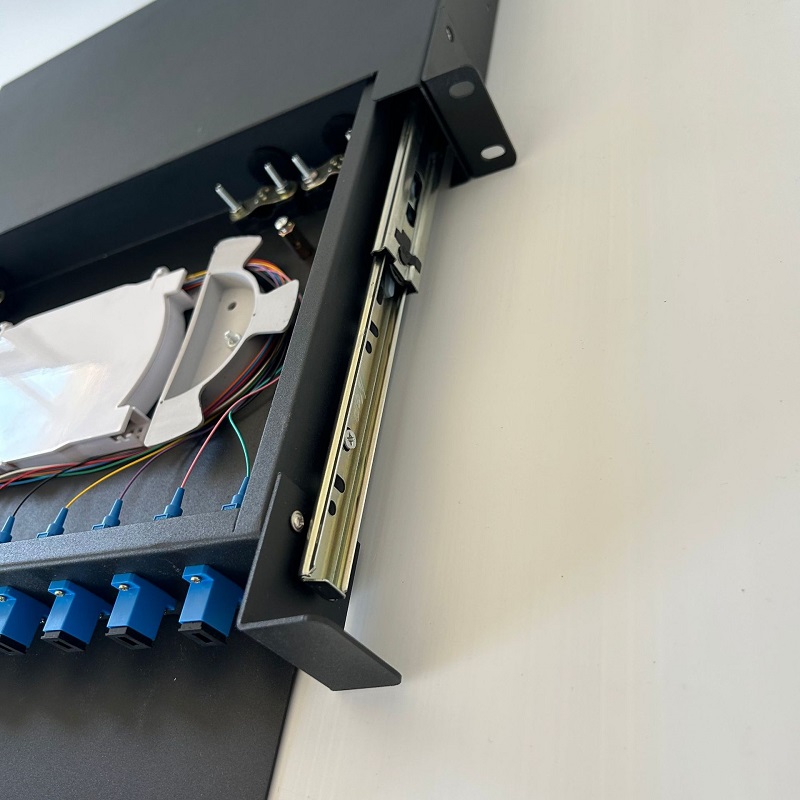

Rack-Mounted Pull-Out Design: 1U 19-inch standard rack-mounted form factor, saving installation space and facilitating centralized fiber management. The smooth pull-out tray allows easy access to splicing, termination, and maintenance operations—no need to remove the entire box from the rack, significantly improving on-site work efficiency for technicians.
Telecom-Grade Reliability: Manufactured to meet Telcordia GR-1081, IEC 61753, and RoHS standards, with low insertion loss (≤0.2dB per port) and high return loss (≥50dB), ensuring stable signal transmission for mission-critical telecom networks. Strict quality control in our clean workshops guarantees consistent performance and long service life.
Full-Configured for Ready-to-Use: Pre-installed adapters, splice trays, fiber routing slots, and cable fixing points—no additional components needed. Ready to install right out of the box, reducing on-site installation time and labor costs, ideal for large-volume deployment.
Durable & Protective Construction: Crafted from high-strength cold-rolled steel or reinforced engineering plastic (ABS/PC), featuring excellent structural stability, EMI shielding, and corrosion resistance. The sealed enclosure effectively protects internal fiber splices and components from dust, moisture, and mechanical impact.
Efficient Fiber Management: Integrated fiber routing channels, splice trays, and cable management clips ensure neat fiber arrangement, minimizing fiber bend damage (complying with fiber bend radius standards) and facilitating routine inspection, maintenance, and network expansion.
Universal Compatibility: Fully compatible with single-mode/multi-mode fibers, standard fiber optic connectors (SC, LC, FC, ST), and splicing accessories. Seamlessly integrates into existing telecom networks, data centers, and FTTH infrastructure, supporting future network upgrades.
Cost-Effective & Scalable: Backed by our mass production capacity, we offer competitive pricing for bulk orders without compromising quality. The 12/24/48-port options allow you to choose the perfect configuration for your project, ensuring scalability as your network grows.
| Configuration | Port/Core Capacity | Installation Type | Connector Type | Operating Temperature | Material |
|---|
| 12-Port | 12 Core | 1U 19-Inch Rack-Mounted (Pull-Out) | SC/LC/FC/ST (UPC/APC Optional) | -40℃ ~ +85℃ | Cold-Rolled Steel / ABS/PC |
| 24-Port | 24 Core | 1U 19-Inch Rack-Mounted (Pull-Out) | SC/LC/FC/ST (UPC/APC Optional) | -40℃ ~ +85℃ | Cold-Rolled Steel / ABS/PC |
| 48-Port | 48 Core | 1U 19-Inch Rack-Mounted (Pull-Out) | SC/LC/FC/ST (UPC/APC Optional) | -40℃ ~ +85℃ | Cold-Rolled Steel / ABS/PC |
