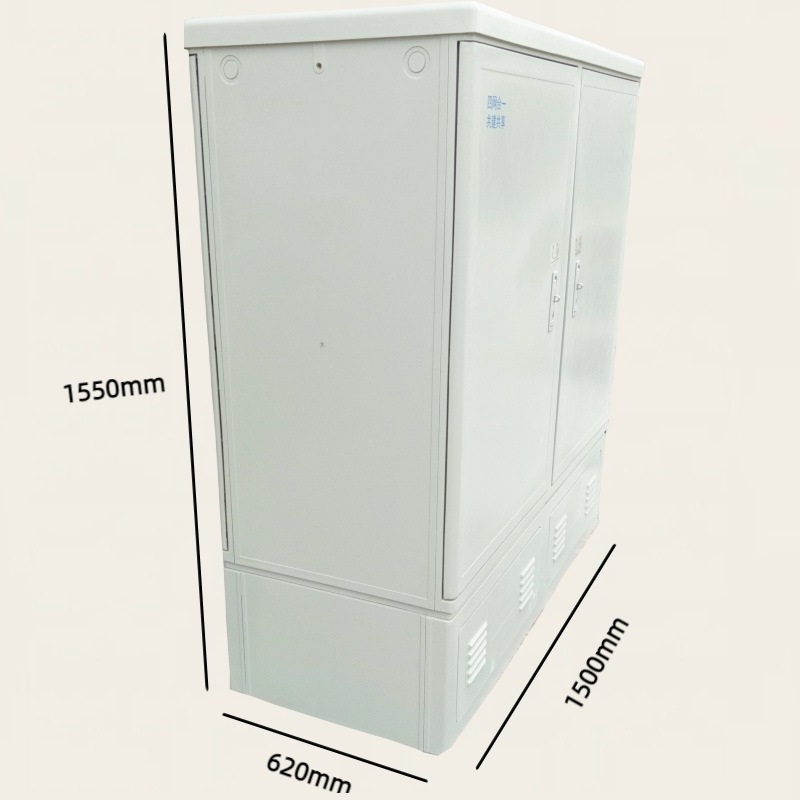

1152 Core Pluggable Optical Cross Connect Cabinet - SC/FC Tray 3-in-1 ODF Distribution Frame
Description:
Chengdu Focus Infra Materials, a global leader in high-performance fiber optic infrastructure components with 10000+ patents and 3 million sets of production equipment, proudly presents the 1152 Core Pluggable Optical Cross Connect Cabinet (OCC)—a telecom-grade 3-in-1 fiber optic distribution solution integrated with SC/FC trays, designed for triple-network (Telecom, Unicom, Mobile) and quadruple-network (plus Broadcast TV) compatibility. Engineered for large-scale fiber access networks, metro backbone deployments, and outdoor/indoor telecom nodes, this 3-in-1 optical cross connect box integrates fiber splicing, storage, and distribution functions in a modular, pluggable design, delivering carrier-grade reliability, efficient maintenance, and seamless resource sharing for modern multi-network integration projects worldwide.
As a professional manufacturer with standardized clean workshops, we engineer our 1152-core pluggable optical cross connect cabinets to meet the rigorous demands of telecom operators, system integrators, and network builders. Compliant with YD-T 988-2015, IEC 60529, and RoHS standards, this cabinet is optimized for high-density fiber management, supporting the integration of multiple network operators’ resources, reducing redundant construction, and lowering deployment costs.
Key Features:
1.1152-Core High-Density Capacity: Designed for 1152-core fiber termination, splicing, and distribution, equipped with 12-core fusion-splicing-distribution integrated trays, maximizing fiber capacity in a compact structure. Supports both ribbon and non-ribbon optical cables, perfectly matching the needs of large-scale metro backbone networks, FTTH central offices, and multi-network convergence nodes
2. Pluggable Modular Design: Adopts pluggable SC/FC adapter trays and fusion-splicing modules, enabling quick insertion and removal for on-site maintenance and network expansion. The modular structure allows flexible configuration of SC/FC adapters (UPC/APC optional), adapting to different connector type requirements without disassembling the entire cabinet, significantly improving on-site work efficiency.

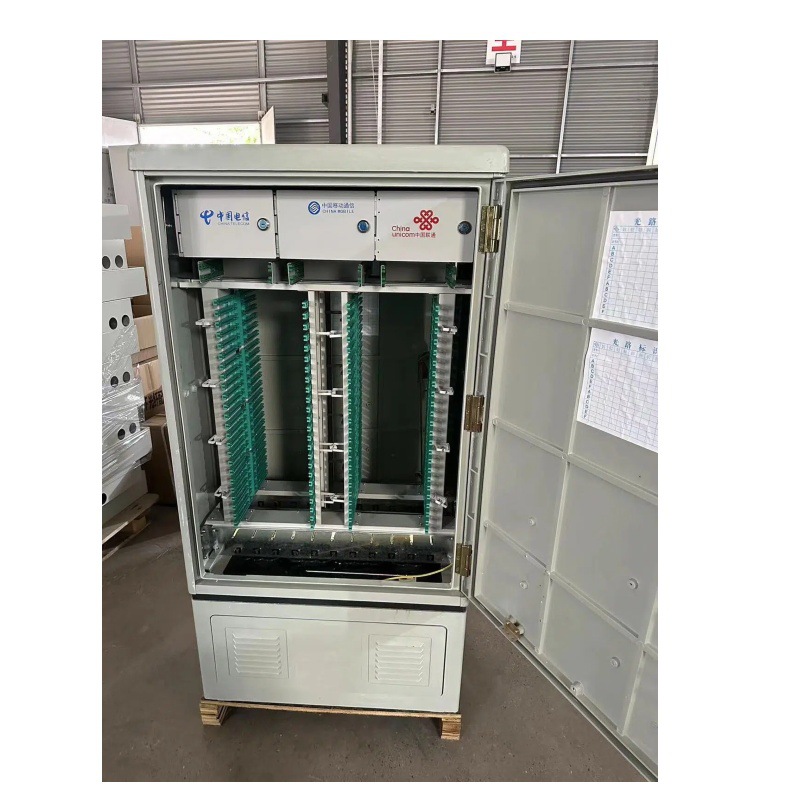

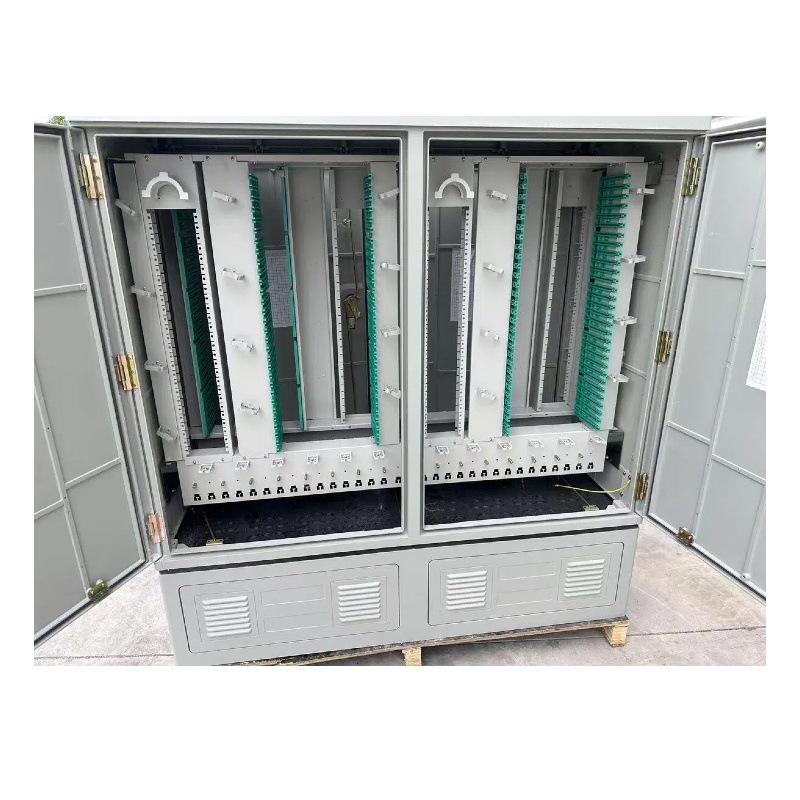

3. 3-in-1 Integrated SC/FC Tray: All-in-one tray integrating fiber fusion splicing, fiber storage, and fiber distribution functions, eliminating the need for separate components. The tray can be pulled out of the cabinet for front-side operation, with clear routing slots and fiber storage areas, ensuring neat fiber arrangement and minimizing fiber bend damage (curvature radius ≥30mm).
4. Triple/Quadruple Network Compatibility: Specifically designed for triple-network (China Telecom, China Unicom, China Mobile) and quadruple-network (plus China Broadcast TV) convergence, supporting resource sharing and interconnection between different operators. Effectively reduces redundant line construction, streamlines network layout, and optimizes deployment costs for multi-network integration projects.
5. Telecom-Grade Reliability & Protection: Manufactured to meet Telcordia GR-1081, YD-T 988-2015, and IEC 61753 standards, with low insertion loss (≤0.35dB per port) and high return loss (UPC≥50dB; APC≥60dB). The cabinet features IP55/IP65 waterproof and dustproof protection (optional), with a sealed structure and silicone rubber gaskets to resist harsh outdoor environments, extreme temperatures (-40℃~+85℃), salt spray, and mechanical impact.
| Item | Specification |
|---|
| Core Capacity | 1152 Core |
| Tray Type | 3-in-1 Fusion-Splicing-Distribution Integrated Tray (12-core per tray) |
| Connector Type | SC/FC (UPC/APC Optional) |
| Protection Level | IP55/IP65 (Optional) |
| Material | SMC / 304 Stainless Steel (Optional) |
| Operating Temperature | -40℃ ~ +85℃ |
| Insertion Loss | ≤0.35dB per port |
| Return Loss | UPC≥50dB; APC≥60dB |
| Installation Type | Floor-Mounted, Wall-Mounted, Pole-Mounted (Optional) |
| Network Compatibility | Triple-Network (Telecom/Unicom/Mobile), Quadruple-Network (Plus Broadcast TV) |
| Compliance Standards | YD-T 988-2015, IEC 60529, IEC 61753, RoHS |
