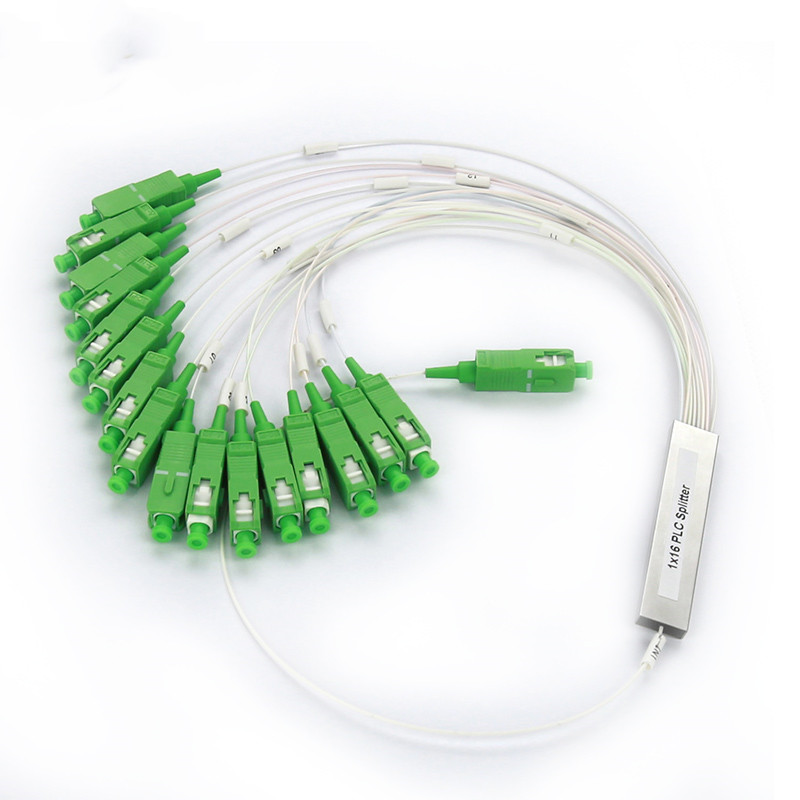

High-Density Steel Tube Optical Splitter 1x16 Mini Type PLC Splitter with SC/APC Connectors
Description:
The SC/APC 16 Core Mini Type Fiber Optic Splitter is a high-density passive optical component designed for large-scale FTTH (Fiber to the Home) deployments. Utilizing advanced Planar Lightwave Circuit (PLC) technology, this 1x16 splitter efficiently divides a single optical input into 16 individual outputs with exceptional uniformity.
Designed and supplied by Chengdu Focus Infra Materials, this mini-type (steel tube) splitter is the perfect choice for network engineers looking to maximize port density within small-form-factor enclosures, such as Fiber Distribution Hubs (FDH) and outdoor terminal boxes.
Technical Specifications
| Parameters | Technical Data |
| Splitter Type | 1 x 16 PLC Splitter (Mini Type) |
| Connector Type | SC/APC |
| Operating Wavelength | 1260nm ~ 1650nm |
| Insertion Loss | ≤ 10.5 dB |
| Loss Uniformity | ≤ 0.8 dB |
| Return Loss | ≥ 55 dB |
| Fiber Type | G.657.A1 (or customized) |
| Steel Tube Size | 60mm x 7mm x 4mm |
Features:
High-Density Scaling: Allows for double the user capacity compared to 1x8 splitters within a nearly identical physical footprint.Precision SC/APC Termination: Equipped with 17 high-grade SC/APC connectors (1 input + 16 outputs), featuring an angled polish to ensure a return loss of $\ge 55 dB$, critical for video and high-speed data transmission.Exceptional Uniformity: Our 1x16 PLC chips ensure that optical power is distributed evenly across all 16 ports, preventing signal drop-outs on any single branch.G.657.A1 Bend-Insensitive Fiber: Built with premium fiber to ensure minimal loss during tight-bend installations in compact splice trays.Robust Steel Tube Housing: Provides mechanical protection for the delicate PLC chip while remaining small enough to be integrated into any modular system.Applications
FTTH/FTTX Deployments: Distributing signals from the Central Office to multiple end-users.
PON/GPON/EPON Networks: High-efficiency optical power management.
CATV Systems: Distributing video signals across fiber-optic CATV networks.
Fiber Testing Equipment: Integrated into modular testing units.
