High Reliability SC APC 2 Core Mini Type Fiber Optic Splitter for FTTx Network
Description:
In the fast-growing fiber optic communication industry, mini type fiber optic splitters have become the core passive component for space-constrained FTTx (Fiber-to-the-x), PON (Passive Optical Network), GPON, and FTTH (Fiber-to-the-Home) projects. As a global professional supplier of fiber optic network products, Chengdu Focus Infra Materials Co., Ltd. is proud to present our SC APC 2 Core Mini Type Fiber Optic Splitter—engineered with precision, compact design, and superior optical performance to meet the stringent requirements of modern fiber access networks. This mini splitter integrates advanced PLC (Planar Lightwave Circuit) technology, SC APC connectors, and a ultra-compact form factor, making it an ideal solution for signal distribution in tight spaces such as fiber distribution boxes, wall-mounted enclosures, and high-density telecom cabinets. Backed by our company’s strict quality control, global service network, and rich industry experience, this SC APC 2 core mini splitter delivers consistent performance and long-term durability, helping telecom operators, network integrators, and project contractors optimize network deployment efficiency and reduce costs.

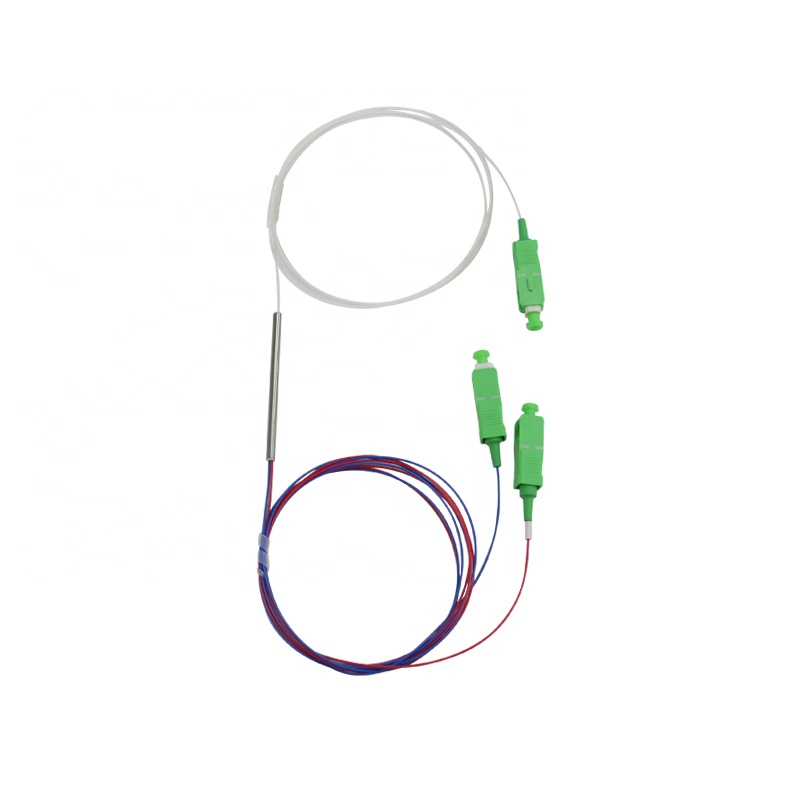

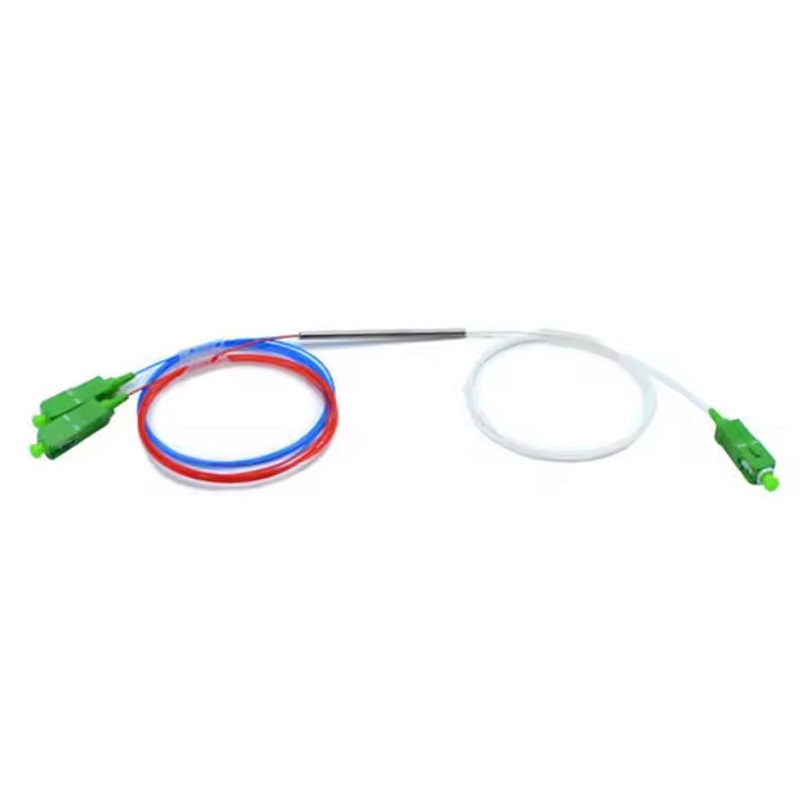

CD focus' SC APC 2 Core Mini Type Fiber Optic Splitter is a high-performance passive optical component designed for efficient signal distribution in FTTx, PON, GPON, and FTTH networks. Adopting PLC technology—recognized for its stable signal splitting, wide wavelength compatibility, and excellent uniformity—this splitter features 2 core SC APC (Angled Physical Contact) connectors, engineered with 8° angled polishing to minimize signal reflection (a critical requirement for PON networks where signal integrity directly impacts service quality). The miniaturized design (4 x 50 x 7 mm typical dimensions) makes it perfect for installation in space-constrained environments, while the 9/125μm single-mode fiber core (compliant with ITU-T G.657A1 standard) supports long-distance transmission across the full operating wavelength range of 1260~1650 nm. As a key product in Chengdu Focus Infra Materials’ comprehensive fiber optic product lineup, this SC APC 2 core mini splitter is fully compatible with our fiber optic adapters, patch cords, and distribution boxes, providing a one-stop connectivity solution for fiber access network construction.
Unlike traditional bulky splitters, our mini type design eliminates the need for large installation space, making it suitable for embedding into fiber closures, wall boxes, and small telecom enclosures—ideal for residential buildings, commercial complexes, and rural FTTx deployments. Each splitter undergoes strict pre-delivery testing to ensure optimal optical performance, meeting international industry standards and exceeding the expectations of global clients.
| Parameter | Specification |
|---|
| Product Type | SC APC 2 Core Mini Type Fiber Optic Splitter (PLC Technology) |
| Connector Type | SC APC (Angled Physical Contact), 2 Core |
| Technology Type | PLC (Planar Lightwave Circuit) |
| Fiber Type | Single-Mode (SM), 9/125μm, ITU-T G.657A1 compliant |
| Splitting Ratio | 1x2 (50/50), equal splitting |
| Operating Wavelength | 1260 ~ 1650 nm |
| Insertion Loss | ≤4.1dB (typical), ≤4.5dB (maximum) |
| Return Loss | ≥55dB (SC APC) |
| Uniformity | ≤0.4dB |
| Polarization Dependent Loss (PDL) | ≤0.2dB |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -45℃ ~ +85℃ |
| Enclosure Type | Mini Steel Tube / ABS (optional) |
| Typical Dimensions | 4 x 50 x 7 mm (H x W x D) |
| Compliance | RoHS, TIA/EIA-604, IEC 61754, Telcordia GR-1209-Core, GR-1221-Core |
| Application | FTTx, PON, GPON, FTTH, Fiber Distribution Boxes, Wall-Mounted Enclosures, Telecom Cabinets |
