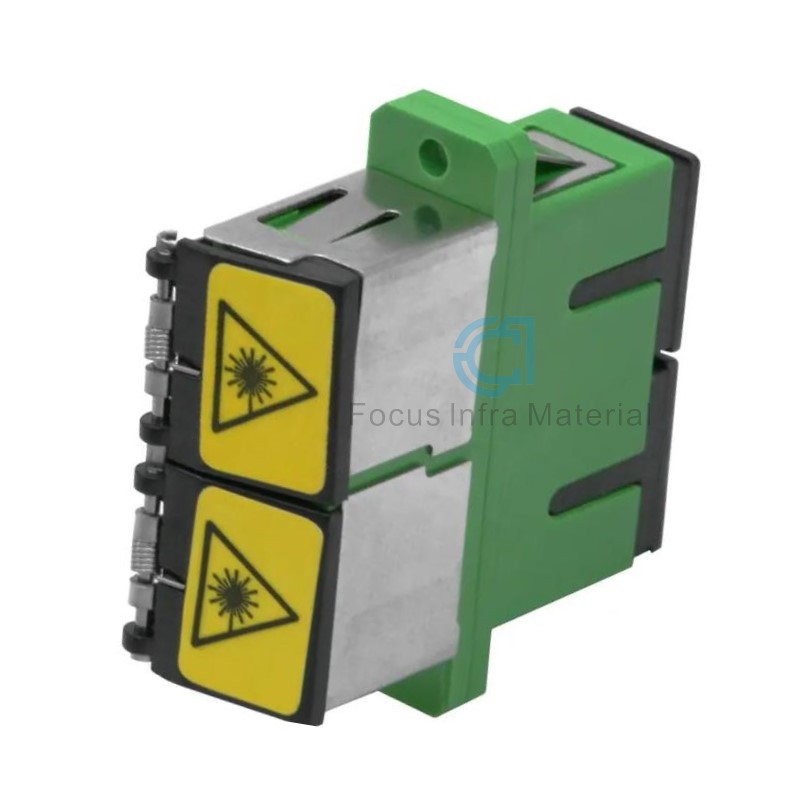

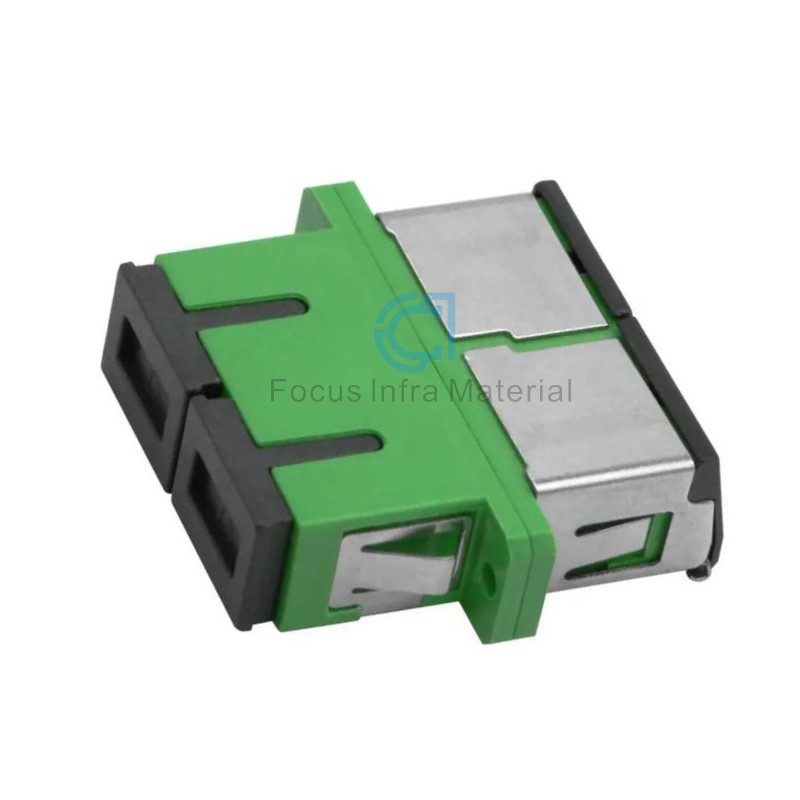

FTTH Connector SC APC DX SM Duplex Singlmode Metal Side Shutter Fiber Optic Adapter

208 Views

Adapter Type: SC/APC to SC/APC
Fiber Mode: Single-Mode
Insertion Loss: ≤0.2 dB
Return Loss: ≥50 dB
Operation Temperature: -40°C to +85°C
Durability: >1,000 mating cycles
Shutter Mechanism: Automatic spring-loaded protection

Get a Quote

Category :

SC Fiber Optic Adapter

Description

FTTH Connector SC APC DX SM Duplex Singlmode Metal Side Shutter Fiber Optic Adapter

Description:

At Chengdu Focus Infra Materials Company, we engineer precision-driven fiber optic components that redefine reliability and performance for telecom, data center, and enterprise network applications. Our SC APC DX Metal Side Shutter Adapter stands as a flagship product, designed to meet the rigorous demands of modern optical communication systems while delivering unmatched durability, signal integrity, and ease of use.Crafted with aerospace-grade metal alloys and high-precision machining, our SC APC DX Metal Side Shutter Adapter is built to withstand harsh operating environments—from extreme temperatures (-40°C to +85°C) to high humidity and mechanical stress. The metal housing ensures superior corrosion resistance and structural stability, eliminating the risk of deformation or signal loss over time—critical for long-term deployment in FTTH (Fiber to the Home), 5G infrastructure, and data center interconnects.

Engineered for universal compatibility, our SC APC DX Metal Side Shutter Adapter is fully compliant with Telcordia GR-326, IEC 61754-4, and RoHS standards, ensuring seamless integration with all standard SC APC connectors and patch cords. The adapter features a snap-in or screw-mount design, enabling quick and secure installation in patch panels, distribution frames, and wall outlets. Its compact footprint optimizes space utilization in high-density fiber optic enclosures, a critical advantage for data centers and telecom hubs with limited rack space.

Functions and features :

Automatic Shutter Protection: Spring-loaded shutter automatically closes when connectors are unmated, preventing dust accumulation and fiber end-face contamination

Precision Alignment: Ultra-precise zirconia split sleeve ensures low insertion loss (<0.2dB) and optimal signal transmission

Durable Construction: High-strength polymer housing with metal reinforcement for long-term reliability

Easy Installation: Snap-in design allows simple panel mounting without additional tools

Universal Compatibility: Fully compatible with standard SC/UPC connectors from all major manufacturers
