What is a fiber splice protection sleeve?

Description:

The Fiber Splice Protection Sleeve is a protective optical fiber splicing component composed of a special cross-linked polyolefin and a hot melt tube and a strengthen menber. Fusion splicing is a process where two optical fibers are aligned and then joined together by holt melting the optical glass in a controlled manner. Once this is completed, the splice provides an almost 0dB loss connection. The fiber splice protection sleeve was created to protect a spliced fiber and must be installed on the fiber before the fusion splice is performed.

Types of Fiber Splice Protection Sleeves:

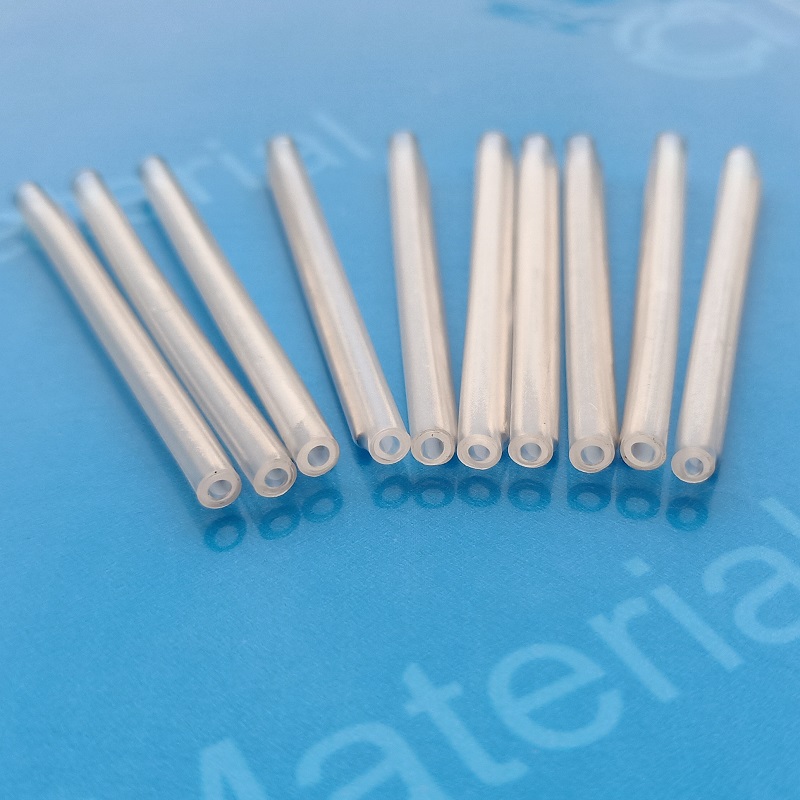

1. Single Fiber Optic Sleeves. As its name suggests, it’s designed for single fiber splicing protection application. Single Fiber Protection Sleeves offer simple, convenient and highly reliable ways to protect and reinforce spliced optical fiber, it can protect bare fiber from 250um to 1.4mm diameter. Chengdu Focus Infra's single fiber splice sleeves is meet a wide range requirments, available length are: 40mm, 45mm, 60mm. for 5G 6G high capacity tray, Chengdu Focus Infra Materials company designed micro fiber sleeves, available length: 15mm, 20mm, 25mm, 30mm, 35mm, 40mm to meet market's requirements.

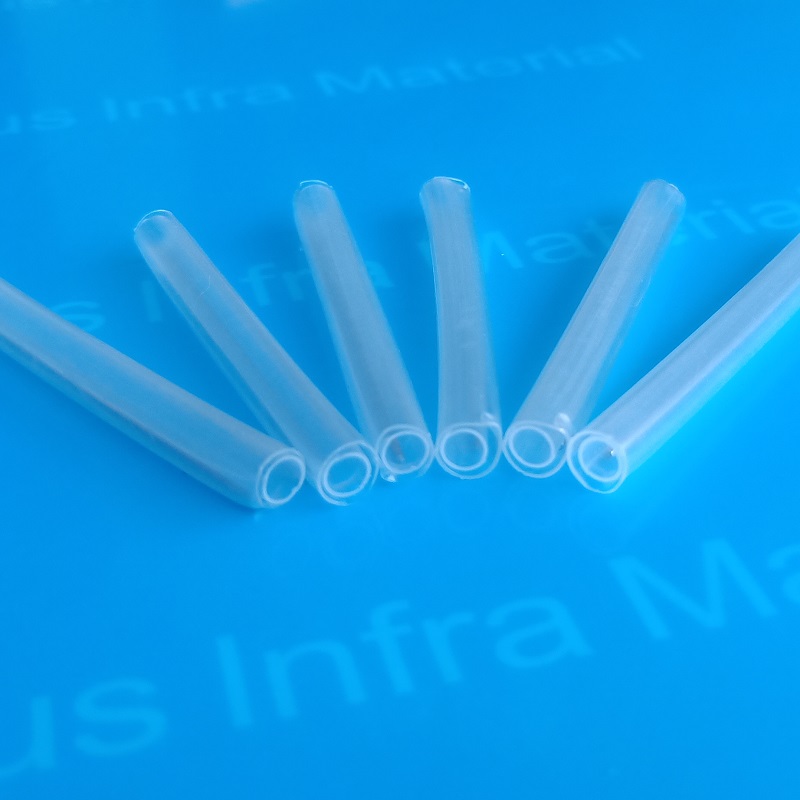

2. Drop Cable Protection Sleeves. This item is designed for drop wire usage. Mainly used for covered wire fiber splicing cable connector box, cable, terminal box, ODF boxes, broadband network boxes and other communications products.

3. Multi Fiber Optic Sleeves. It's also named at Ribbon Fiber Splice Sleeves. It is designed to accommodate 2-12 ribbon fibers.

At Chengdu Focus Infra Materials Company, we offer a wide variety of fiber splice sleeves, each designed for specific fiber optic applications. Whether you're splicing single fibers, drop cables, microfibers, or ribbon cables, our splice sleeves provide the best in durability, protection, and reliability. Below, we introduce the key differences between our various fiber splice sleeves and their most common use cases.
