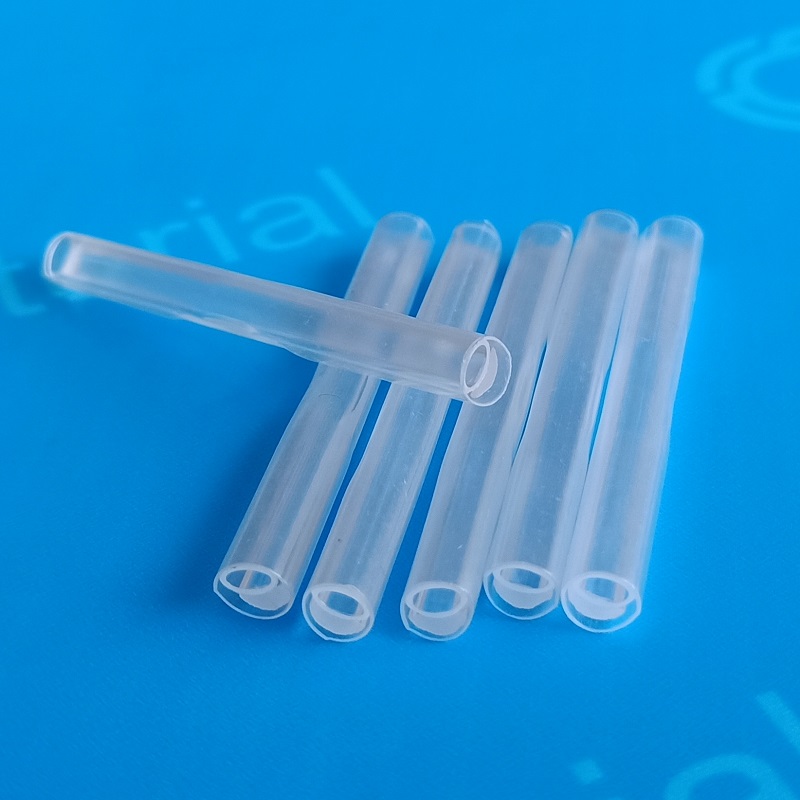

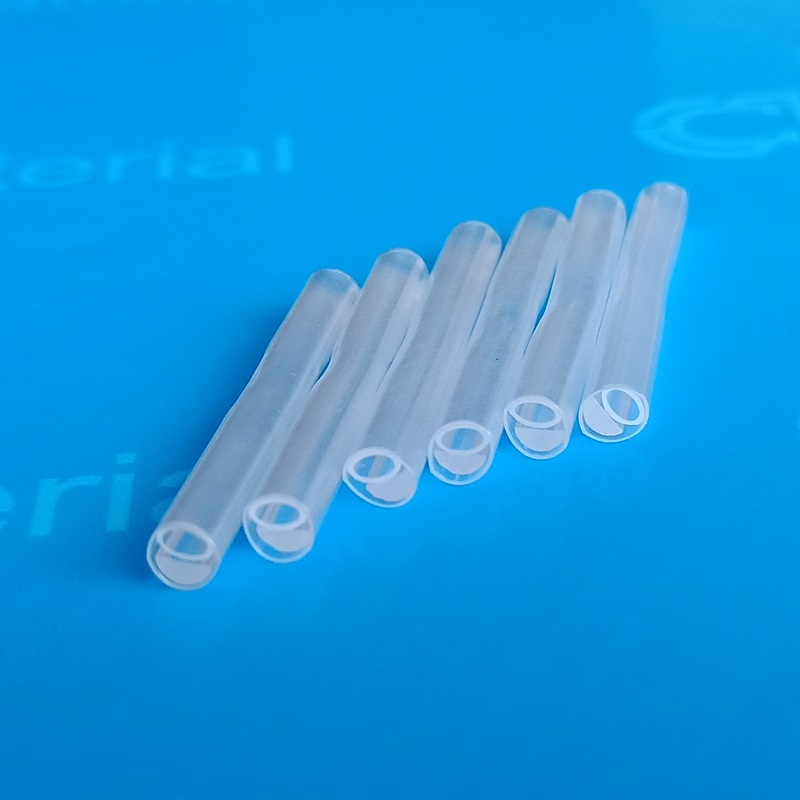

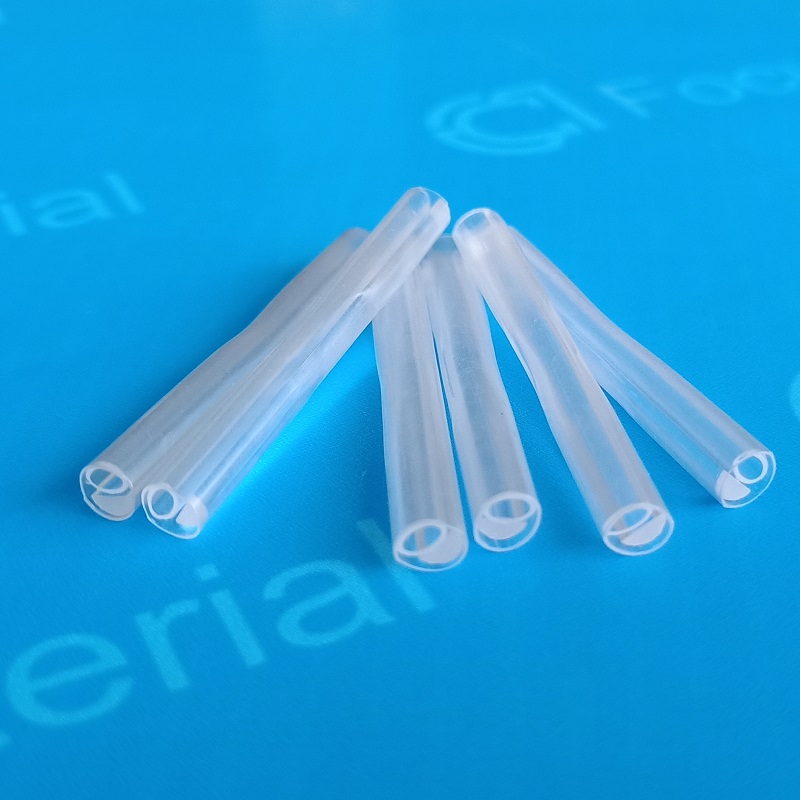

12F Ribbon Fiber Splice Protector Single Quartz rod 40mm Fusion Splice Protect Sleeves

87 Views

Name: 12F Ribbon Fiber Splice Sleeves
Length: 40mm
Materials: EVA Tube+Quartz rod
Color: Transfer
Application: Ribbon Fiber Fusion Protection
Daily Capacity: 1500000pcs/month

Get a Quote

Category :

Fiber Optic Splice Sleeves

Description

12F Ribbon Fiber Splice Protector Single Quartz rod 40mm Fusion Splice Protect Sleeves

Description:

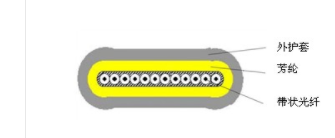

Ribbon fiber fusion splice sleeves are protective casings used to shield and reinforce the point where multiple optical fibers (in a ribbon) are joined together using fusion splicing, it is specifically designed for mass fusion splices, accommodating 2 to 12 fibers in a single sleeve for efficient, high-density applications.

A Full Shrink Type Single Fiber Optic Heat shrink Tube is consisted of outer high quality irradiation cross-linked polyolefin heat shrinkable tubing provides an instant shrink-force and drives the adhesive liner into all areas of the splice and excludes all the air.

Focus Infra's 12F Single Quartz Heat Shrink Protective Ribbon Fiber Splice Sleeve is constructed with an inner EVA meltable adhesive tube, a polyolefin heat shrink outer tube and single strength members.

Chengdu Focus Infra Materials company is manufacturing a wide range of fiber splice sleeves to meet different application, welcome to contact us for more details.

Features:

1. Protection: Shields the splice from moisture, dust, and mechanical stress.

2. Strength: The rod maintains alignment and prevents fiber breakage.

3. Efficiency: Allows mass splicing of many fibers at once, saving time.

4. Visibility: Clear sleeves allow inspection of the splice without unwrapping.

Technical Parameters:

Specification	Test method	Typical data
Tensile strength(MPa)	ASTM D 2671	18
Elongation at Break (%)	ASTM D 2671	700
Density(g/cm2)	ISO R1183D	0.94
Dielectric strength (KV/mm)	IEC 243	20
Permittivity	IEC 243	2.5
Length rate of change (%)	ASTM D 2671	+5

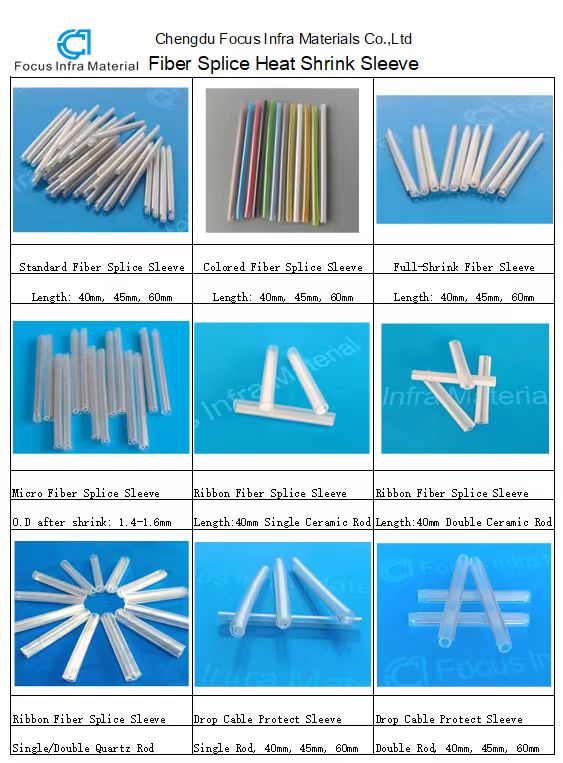

Fiber Fusion Splice Sleeves
