60mm Colorful Single Fiber Fusion Splice Sleeves for FTTH Project Optical Fiber Splice Protector

82 Views

Name: Colorful single fiber splice sleeves
Length: 40mm, 45mm, 60mm, customize length available
Materials: EVA Tube+304SS Rod
Color: 12 colorful
Application:Fiber Fusion Protection
Diamteter: 2.7mm, Customizable
Daily Capacity: 1500000pcs/month

Get a Quote

Category :

Fiber Optic Splice Sleeves

Description

60mm Colorful Single Fiber Fusion Splice Sleeves for FTTH Project Optical Fiber Splice Protector

Description:

Focus Infra's Colorful Fiber Fusion Splice Sleeves are small, heat-shrinkable tubes used to protect and reinforce the delicate fusion splice point where two optical fibers are joined, with different colors aiding in identification and organization within complex cable management systems like splice trays, ensuring performance and preventing damage from bending or moisture.

In large fiber networks (like data centers or FTTH deployments), using Focus Infra's 12 colors fiber splice sleeves to matching sleeve colors to fiber colors or splice locations saves significant time. With clear sleeves allow for visual inspection of the splice after shrinking. Different colors can signify different fiber types or network segments, following industry standards or specific project requirements, to improve your working efficiency.

Features:

1. Not affect the optical conductivity of the spliced fiber

2. Easy operation, reduce the damage of optical fiber duringl installation

3. Strong practicality

4. Transparent casing

5. Quickly shrink, improving work efficiency

6. extend the service life of the fiber

7. No air bubbles, no fiber breakage

Technical Parameters:

Specification	Test method	Typical data
Tensile strength(MPa)	ASTM D 2671	18
Elongation at Break (%)	ASTM D 2671	700
Density(g/cm2)	ISO R1183D	0.94
Dielectric strength (KV/mm)	IEC 243	20
Permittivity	IEC 243	2.5
Length rate of change (%)	ASTM D 2671	+5

colorful fiber fusion splice sleeves

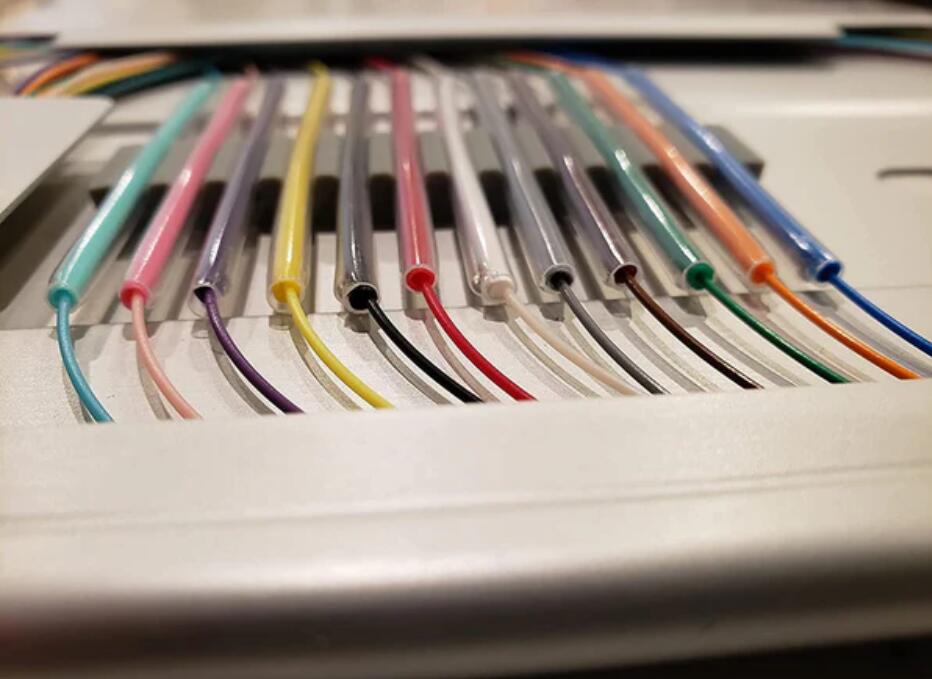

12 colors single fiber sleeves

Fiber Fusion Splice Sleeves
