5G 6G Fiber Optical Heat Shrink Sleeves 25mm Micro 250μm Mini Fiber Fusion Splice Protect Sleeves

81 Views

Name: Mini Fiber Splice Sleeves
Length: 15mm,20mm, 25mm, 30mm, 35mm, 40mm,45mm customize length available
Materials: EVA Tube+304SS Rod 0.5mm diameter
Color: clear
Application:5G 6G High Capacity Fiber Fusion Protection
Diamteter: 1.5mm, Customizable
Daily Capacity: 1500000pcs/month

Get a Quote

Category :

Fiber Optic Splice Sleeves

Description

5G 6G Fiber Optical Heat Shrink Sleeves 25mm Micro 250μm Mini Fiber Fusion Splice Protect Sleeves

Description:

5G 6G Fiber Optical Heat Shrink Sleeves 25mm Micro 250μm Mini Fiber Fusion Splice Protect Sleeves is designed for 250μm bare fiber splicing protection. Length is 45mm, 40mm, 35mm, 30mm, 25mm are available. it is special used in smaller application, such as CWDM, DWDM ect. 1.4mm Small Size Mini Fiber Protection for 250μm Bare Fiber Heat Shrink Sleeve is commonly known as an optical fiber heat shrink protect sleeve. 1.4mm Small Size Mini Fiber Protection for 250μm Bare Fiber Heat Shrink Sleeve is widely used in communication optical fiber splicing projects, it is consisted of a special cross-linked polyolefin, a hot melt tube and a strengthen member. The product is compatible with 250μm bare optical fibers and various micro splicing joints, with a full range of lengths covering 25mm-45mm. The inner diameter is precisely controlled within the range of 0.4mm-1.0mm, and the tolerance is strictly limited to ±0.02mm. It can perfectly fit into the narrow space of high-density fiber optic splicing trays, avoiding installation interference and fiber microbending loss caused by dimensional deviations, and maximizing the space utilization of splicing trays.

Chengdu Focus Infra Materials company manufacturing a wide range of fiber optic splice sleeves to meet the market requirements, welcome to contact us for more details.

Features:

1. Not affect the optical conductivity of the spliced fiber

2. Easy operation, reduce the damage of optical fiber duringl installation

3. Strong practicality

4. Transparent casing

5. Quickly shrink, improving work efficiency

6. extend the service life of the fiber

7. No air bubbles, no fiber breakage

Technical Parameters:

Specification	Test method	Typical data
Tensile strength(MPa)	ASTM D 2671	18
Elongation at Break (%)	ASTM D 2671	700
Density(g/cm2)	ISO R1183D	0.94
Dielectric strength (KV/mm)	IEC 243	20
Permittivity	IEC 243	2.5
Length rate of change (%)	ASTM D 2671	+5

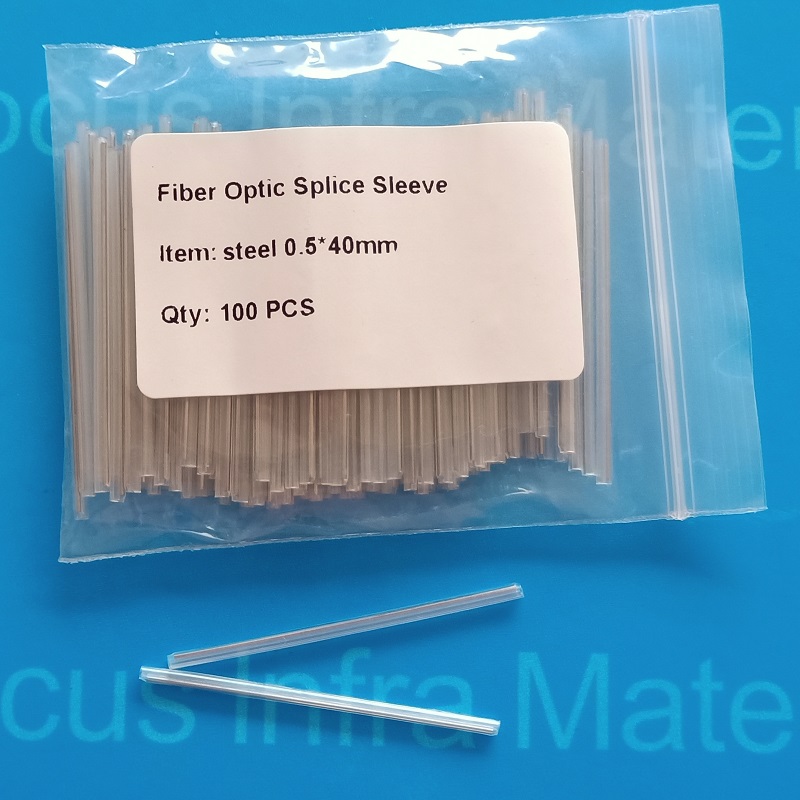

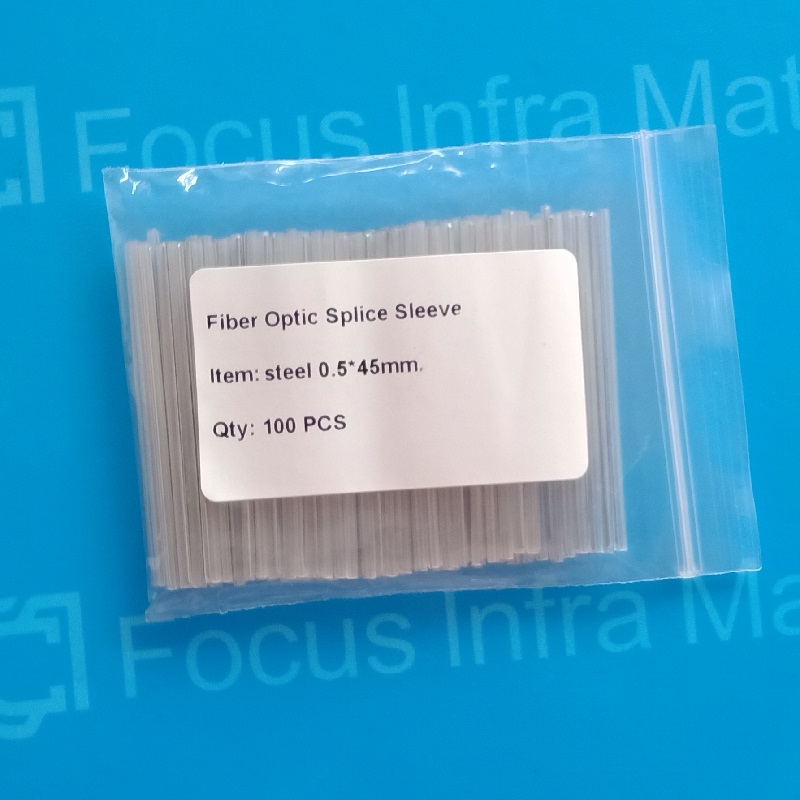

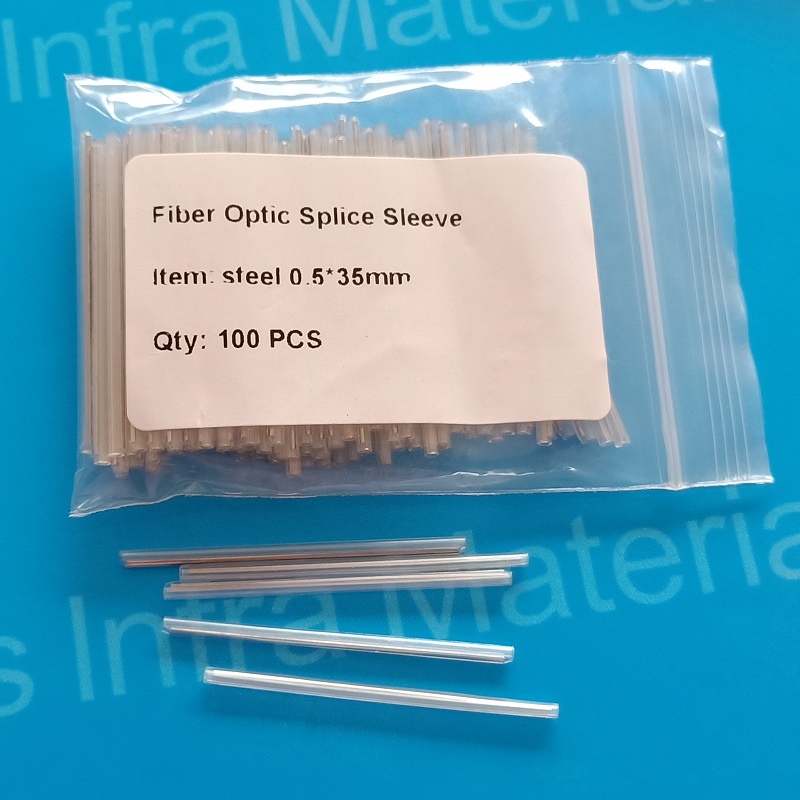

Micro Fiber Fusion Splice Protector Mini Fiber Fusion Splice Sleeves 250μm micro fiber optical heat shrink sleeves

Fiber Fusion Splice Sleeves
