FTTH Drop Cable Joint Heat Shrinkable 60mm 45mm Single Steel Rod Fiber Fusion Splice Sleeves

86 Views

Name: FTTH Drop Cable Joint Sleeves
Length: 40mm, 45mm, 60mm
Materials: EVA Tube+Steel Rod
Color: Transfer
Application: FTTH Drop Cable Protection, Pigtails Joint Protection.
Daily Capacity: 1500000pcs/month

Get a Quote

Category :

Fiber Optic Splice Sleeves

Description

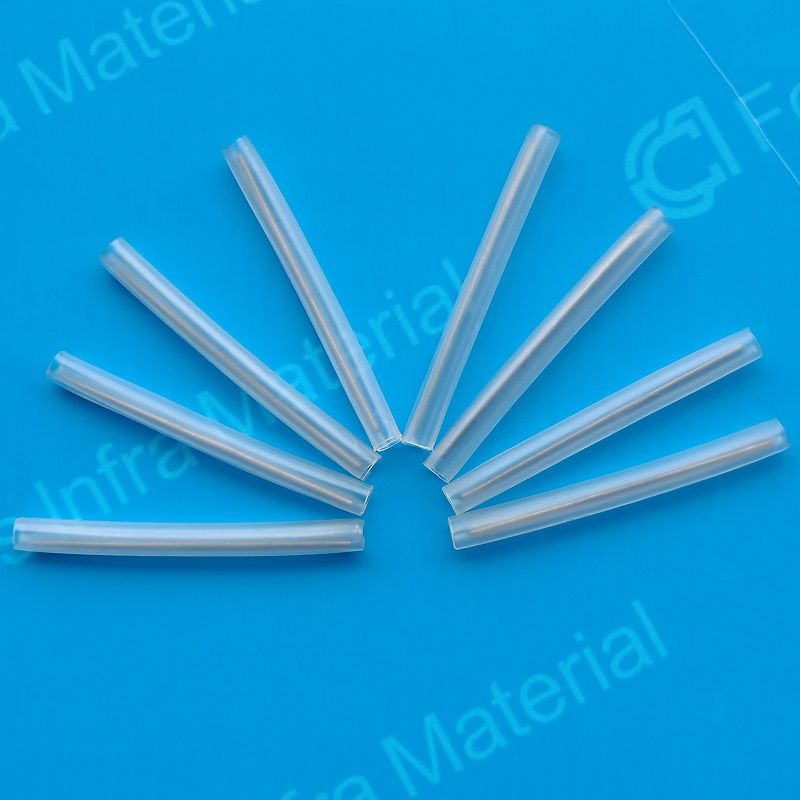

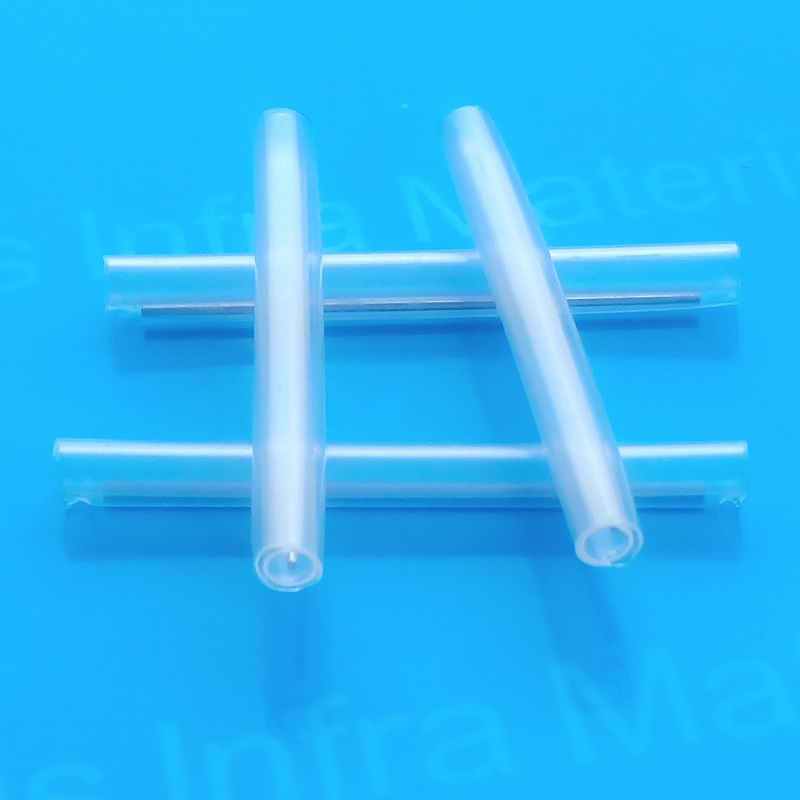

FTTH Drop Cable Joint Heat Shrinkable 60mm 45mm Single Steel Rod Fiber Fusion Splice Sleeves

Description:

FTTH (Fiber to the Home) drop cable splice sleeves are protective devices used to shield fragile fiber optic fusion splices, combining a heat-shrink tube, a hot-melt adhesive liner, and a stainless steel rod for mechanical strength, environmental sealing (moisture/temp), and alignment, ensuring reliable, long-term optical signal transmission in the final connection to a home. It's a protective element for outdoor or indoor cable and between indoor cable and single core fiber jumper. The outer layer has the characteristics of insulation, corrosion prevention and wear resistance, while the inner layer has the advantages of low melting point, waterproof seal and high adhesion. Chengdu Focus Infra Materials Company's Drop Cable Protect Fiber Heat Shrink Sleeves can Moisture resistant for environmental protection Clear sleeve make it easy to detect splice before shrinkage Easily use and avoid any damages to the optical fiber during installation Color optical fiber splice protector is very convenience for installation.

Features:

1. Not affect the optical conductivity of the spliced fiber

2. Easy operation, reduce the damage of optical fiber duringl installation

3. Strong practicality

4. Transparent casing

5. Quickly shrink, improving work efficiency

6. extend the service life of the fiber

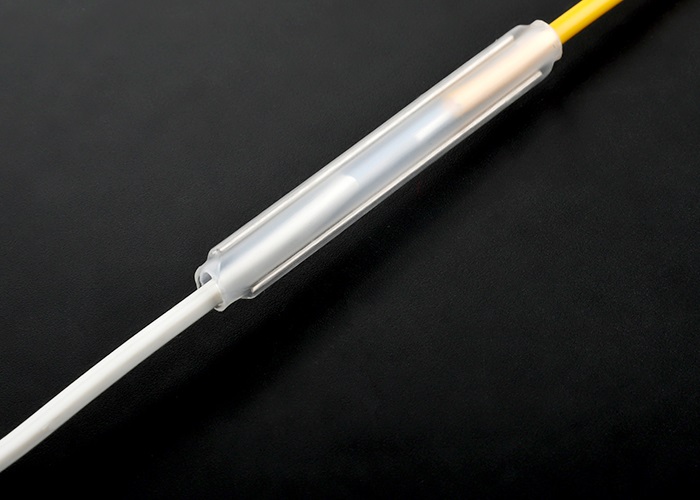

FTTH Drop Cable Joint Protect Sleeves

Fiber Fusion Splice Sleeves
