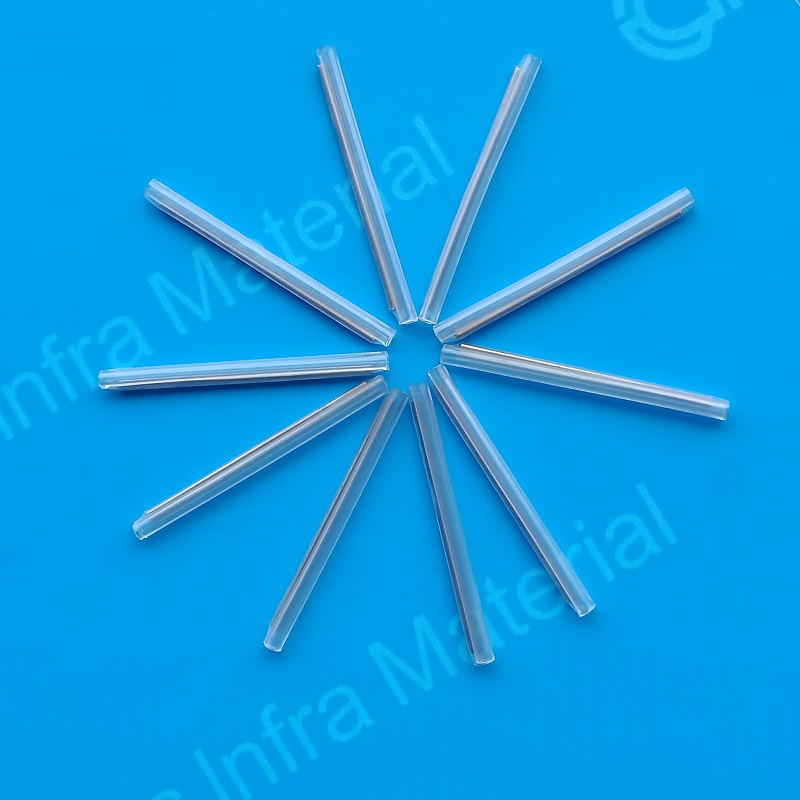

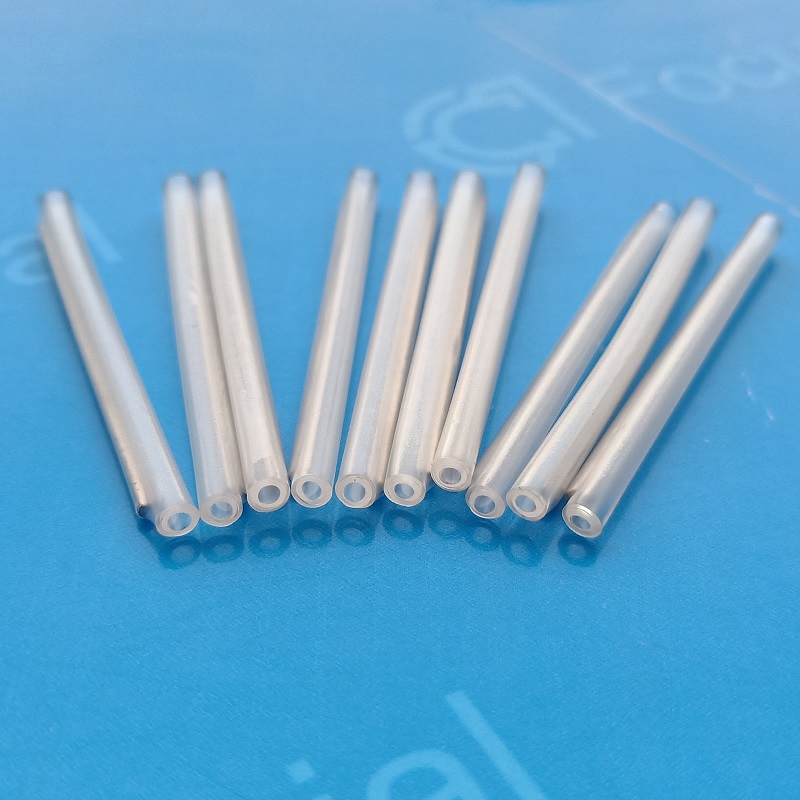

High Quality EVA Outer Tube 60mm Length Single Fiber Optic Heat Shrink Splice Protect Sleeves

76 Views

Name: Sinle Fiber Splice Sleeves
Length: 40mm, 45mm, 60mm, customize length available
Materials: EVA Tube+304SS Rod
Color: Transfer
Application:Fiber Fusion Protection
Diamteter: 2.7mm, Customizable
Daily Capacity: 1500000pcs/month

Get a Quote

Category :

Fiber Optic Splice Sleeves

Description

High Quality EVA Outer Tube 60mm Length Single Fiber Optic Heat Shrink Splice Protect Sleeves

Description:

The Single Fiber Optic Heat Shrink Splice Protect Sleeves intends to protect (mechanically) fiber optic splices. The Fiber Optic Splice Sleeve is built from shrinkable plastic tube with metal cylinder inside. The fibers are inserted before splicing into the plastic tube. After making the splice, the shrinkable tube is heated and shrunk on the splice. It can protect the spliced fiber from being break down and unwanted bending and is coated with the plastic tube. It gives to the installer flexibility while using the spliced fibers during installation.

A Full Shrink Type Single Fiber Optic Heat shrink Tube is consisted of outer high quality irradiation cross-linked polyolefin heat shrinkable tubing provides an instant shrink-force and drives the adhesive liner into all areas of the splice and excludes all the air.

Features:

1. Not affect the optical conductivity of the spliced fiber

2. Easy operation, reduce the damage of optical fiber duringl installation

3. Strong practicality

4. Transparent casing

5. Quickly shrink, improving work efficiency

6. extend the service life of the fiber

7. No air bubbles, no fiber breakage

Technical Parameters:

Specification	Test method	Typical data
Tensile strength(MPa)	ASTM D 2671	18
Elongation at Break (%)	ASTM D 2671	700
Density(g/cm2)	ISO R1183D	0.94
Dielectric strength (KV/mm)	IEC 243	20
Permittivity	IEC 243	2.5
Length rate of change (%)	ASTM D 2671	+5

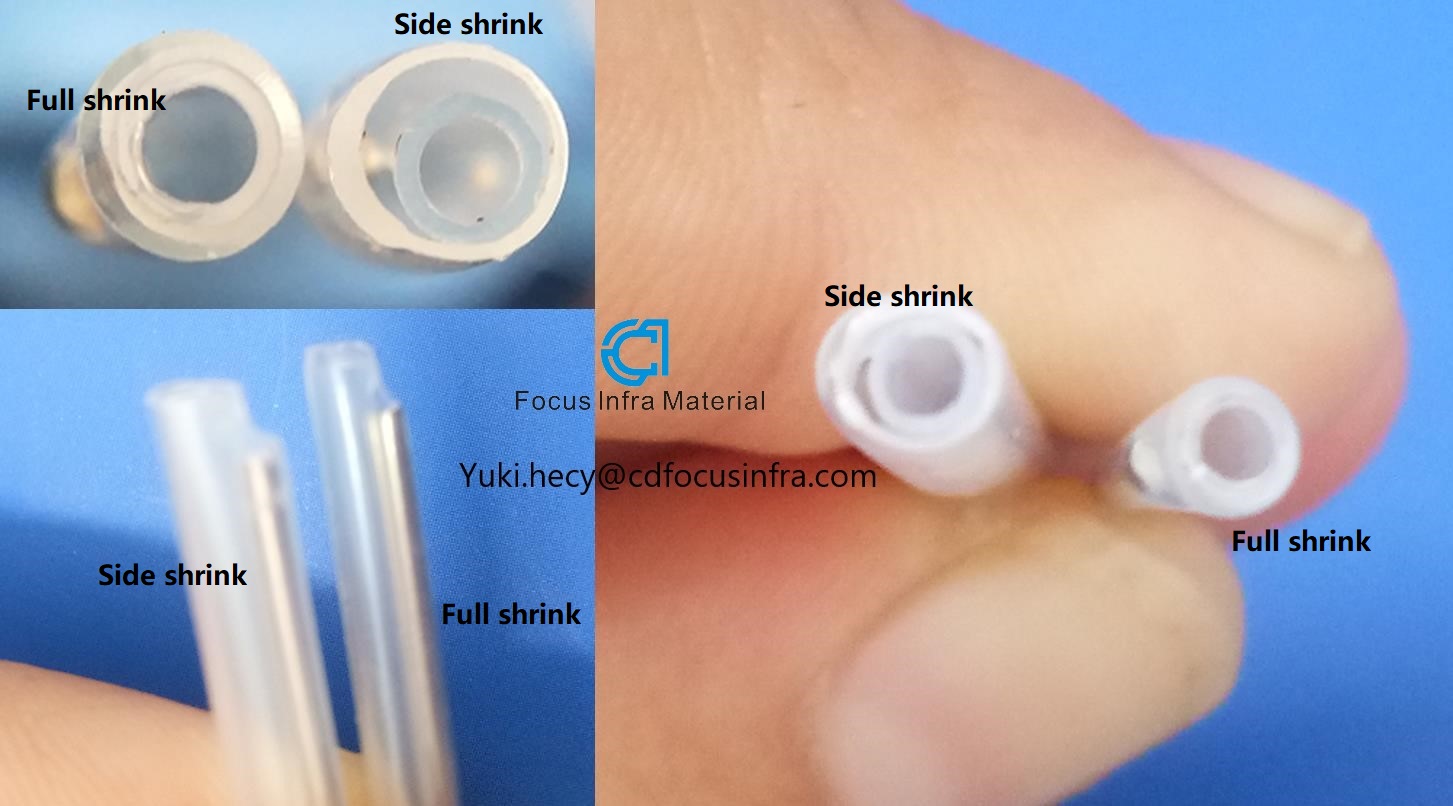

High Quality Single Fiber Splice Sleeves
