FC APC-FC APC SM DX Single Mode Fiber Patch Cable 2mm 3mm 5M Fiber Optic Jumper
Description:

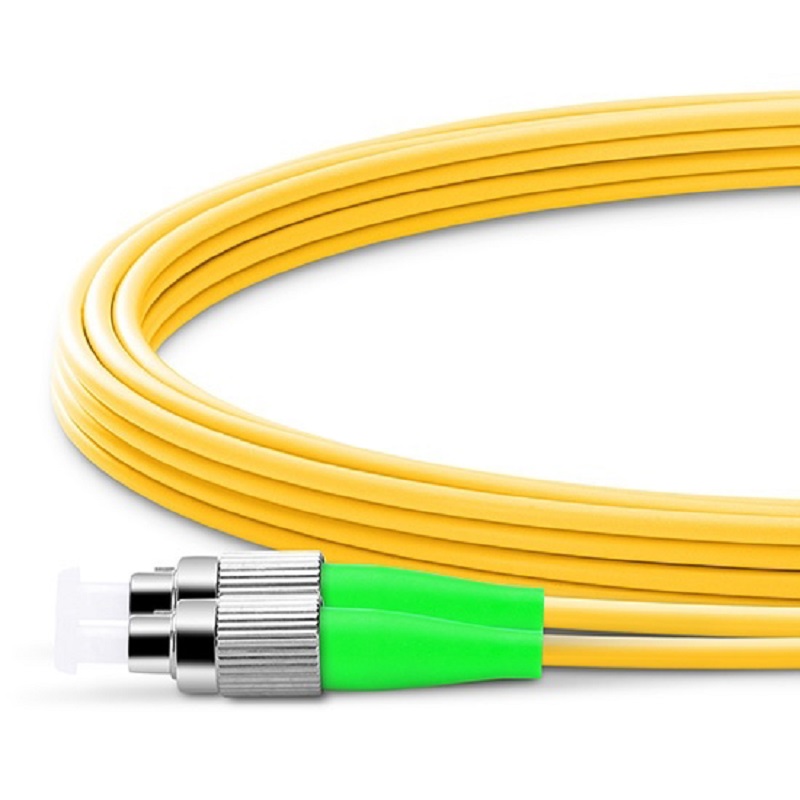

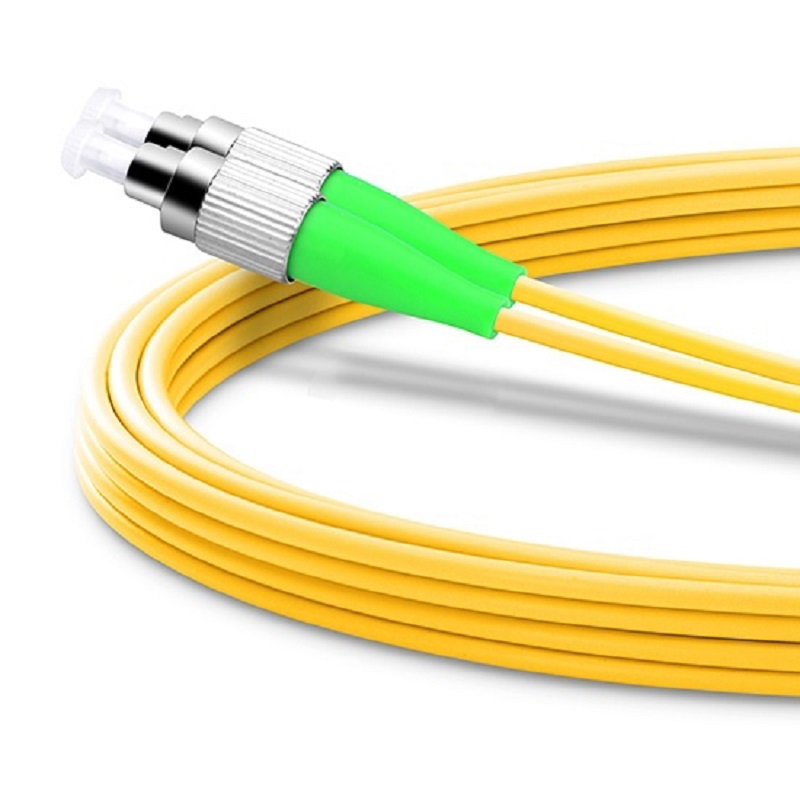

The Fiber Optic FC APC to FC APC Simplex 2.0mm PVC Single Mode Fiber Patch Cable Jumper Fiber Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.
Chengdu Focus Infra Materials Company presents the FC/APC Single-Mode Duplex Patch Cord, engineered to deliver superior performance in reflection-sensitive applications. Combining the robust threaded FC coupling with precision APC polishing, this patch cord ensures optimal signal integrity in CATV, FTTx, and high-speed data transmission systems where back-reflection control is paramount.
Chengdu Focus Infra Materials Company is manufacturing a wide range of fiber optic patch cord to support buyers' demand. please contact us at yuki.hecy@cdfocusinfra.com for more details.
| Technical Parameters |
| PARAMETER | UNIT | FC,SC,LC | ST,MU |
| SM | MM | SM | MM |
| PC | UPC | APC | PC | PC | UPC | PC |
| Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
| Operating Wavelength | nm | 1310 1510 |
| Exchangeability | dB | ≤0.2 |
| Vibration | dB | ≤0.3 |
| Operating Temperature | ℃ | -40℃ to 75℃ |
| Storage Temperature | ℃ | -40℃ to 85℃ |
| Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized |
| Material of the jacket | | PVC or LSZH or customized |
| Color fo the jacket | | SM yellow, OM1,OM2 orange, OM3 aqua,or customized |
| Single mode fibe | | ITU-T G652, or G655, or G657 |
| Multi monde fiber | | ITU-TG.651 |
| Fiber type | | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) |
3. Application：
1. CATV & RF Video Distribution
2. FTTx/PON Network Connections
3. Telecommunications Central Offices
4. Test & Measurement Equipment
5. Military/Aerospace Communications
6. Medical Imaging Systems
Features：
1. Low Insertion loss
2. High return loss
3. Good Repeatability
4. Good Interchange
5. Excellent Environmental Adaptability
6. SM & MM available
