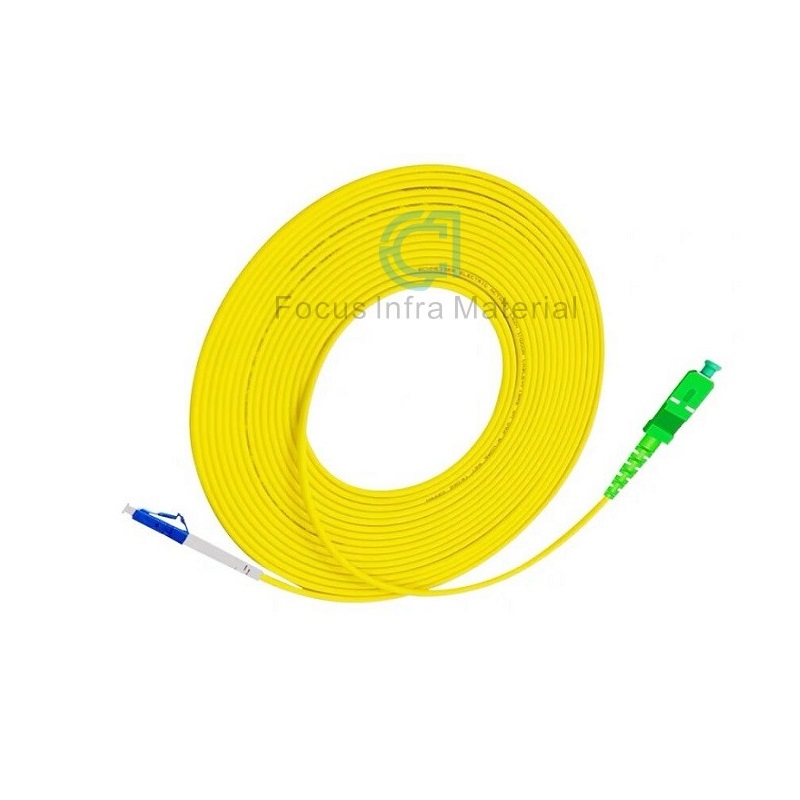

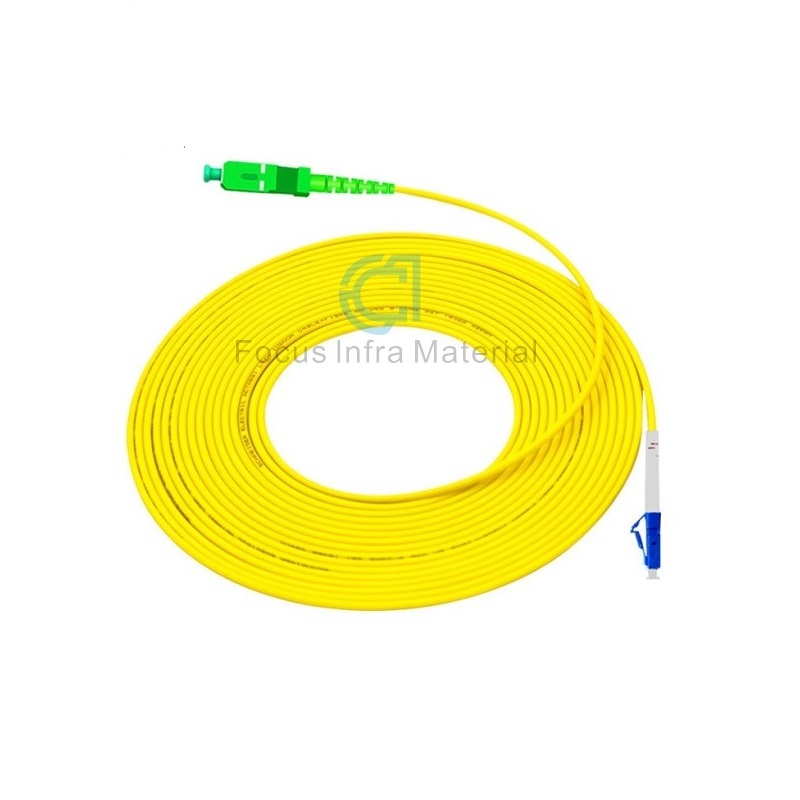

3.0mm 3M FTTH LSZH SC APC to LC UPC SM SX Fiber Optic Jumper Cable
In complex fiber optic deployments where equipment interoperability and signal integrity are paramount, the SC APC to LC UPC SM SX Fiber Optic Jumper Cable offers a tailored hybrid solution. Seamlessly bridging reflection-critical systems with high-density connectivity needs, this cable ensures optimal performance in specialized scenarios. At Chengdu Focus Infra Materials Company, we combine precision engineering with our hallmark small-batch customization, versatile connector expertise, and efficient global logistics to deliver solutions that address your unique technical challenges.
Key Features:
Superior Optical Performance: Boasts low insertion loss (≤0.2dB typical, ≤0.3dB maximum) and high return loss (≥50dB for UPC polish), ensuring minimal signal degradation and reliable data transmission. The ultra-precise ceramic ferrule alignment minimizes signal reflection, making it suitable for high-bandwidth applications such as 10Gbps, 40Gbps, and 100Gbps networks.
Premium Construction & Durability: The cable features a tight-buffered design with high-quality PVC or LSZH (low smoke zero halogen) jacket options, offering excellent flexibility, corrosion resistance, and flame retardancy (compliant with UL94 V-0). The FC UPC connectors are equipped with metal housings for enhanced durability, and the cable is RoHS compliant, ensuring environmental friendliness and safety for various installation environments.
Standard Compliance & Compatibility: Strictly adheres to international industry standards including TIA/EIA-604, IEC 61754, Telcordia GR-326-Core, and ISO 11801, ensuring full compatibility with all FC UPC-based fiber optic equipment such as fiber distribution boxes, optical splitters, fiber adapters, and terminal boxes. The 9/125μm single-mode fiber is compatible with G.652D and G.657A1 standards, supporting long-distance transmission up to tens of kilometers.
Flexible Customization: Available in multiple cable diameters (0.9mm, 2.0mm, 3.0mm) and standard lengths (1m, 2m, 3m, 5m, 10m), with custom lengths and jacket materials (PVC/LSZH) available upon request to meet specific project requirements. The simplex (SX) design is optimized for space-saving installation, ideal for tight spaces in data centers and telecom cabinets.
Easy Installation & Maintenance: The FC UPC connectors feature a secure screw-on design for stable connection, preventing accidental disconnection. Each jumper cable is individually tested for optical performance before delivery, and comes with dust caps to protect the ferrule from dust and damage, extending the product’s service life. The flexible cable design allows for easy routing and bending, reducing installation time and labor costs.
Wide Operating Temperature Range: Designed to operate reliably in extreme temperature conditions from -40℃ to +85℃, making it suitable for both indoor (data centers, office buildings) and outdoor (telecom towers, outdoor distribution boxes) applications, with excellent resistance to UV radiation and environmental wear.
| Parameter | Specification |
|---|
| Product Type | 3.0mm 3M FTTH LSZH SC APC to LC UPC SM SX Fiber Optic Jumper Cable |
| Connector Type | LC UPC (Ultra Physical Contact) on both ends |
| Fiber Type | Single Mode (SM), 9/125μm, G.652D/G.657A1 compliant |
| Cable Design | Simplex (SX), tight-buffered |
| Jacket Material | PVC / LSZH (optional) |
| Cable Diameter | 0.9mm, 2.0mm, 3.0mm (optional) |
| Insertion Loss | ≤0.2dB (typical), ≤0.3dB (maximum) |
| Return Loss | ≥50dB (UPC) |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -45℃ ~ +85℃ |
| Compliance | RoHS, TIA/EIA-604, IEC 61754, Telcordia GR-326-Core |
| Length Options | 1m, 2m, 3m, 5m, 10m (custom lengths available) |
