High Precision Low Loss High Quality FC UPC to FC UPC Single Mode (SM) Simplex (SX) Fiber Optic Jumper Cable

As a professional global supplier in the field of fiber optical networks and data communications, Chengdu Focus Infra Materials Co., Ltd. is proud to present our high-performance FC UPC to FC UPC Single Mode (SM) Simplex (SX) Fiber Optic Jumper Cable, a reliable and durable connectivity solution designed to meet the rigorous demands of modern telecommunication systems, FTTH (Fiber-to-the-Home), FTTX, FTTA, wide area networks (WAN), local area networks (LAN), data centers, and security monitoring systems. Our jumper cable integrates premium materials, strict quality control, and industry-standard design, ensuring seamless signal transmission and long-term operational stability for both indoor and outdoor applications.

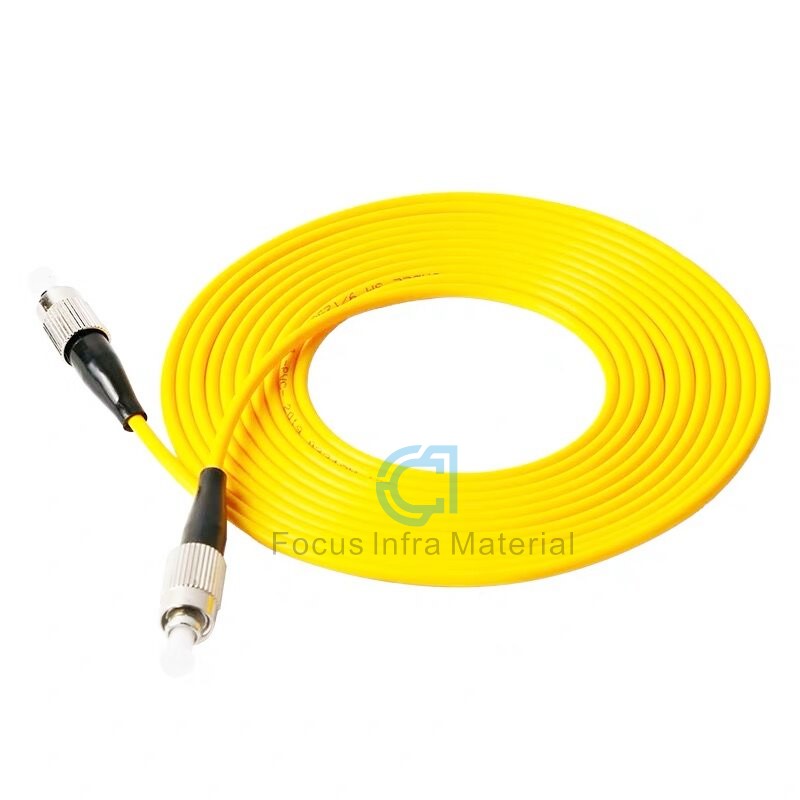

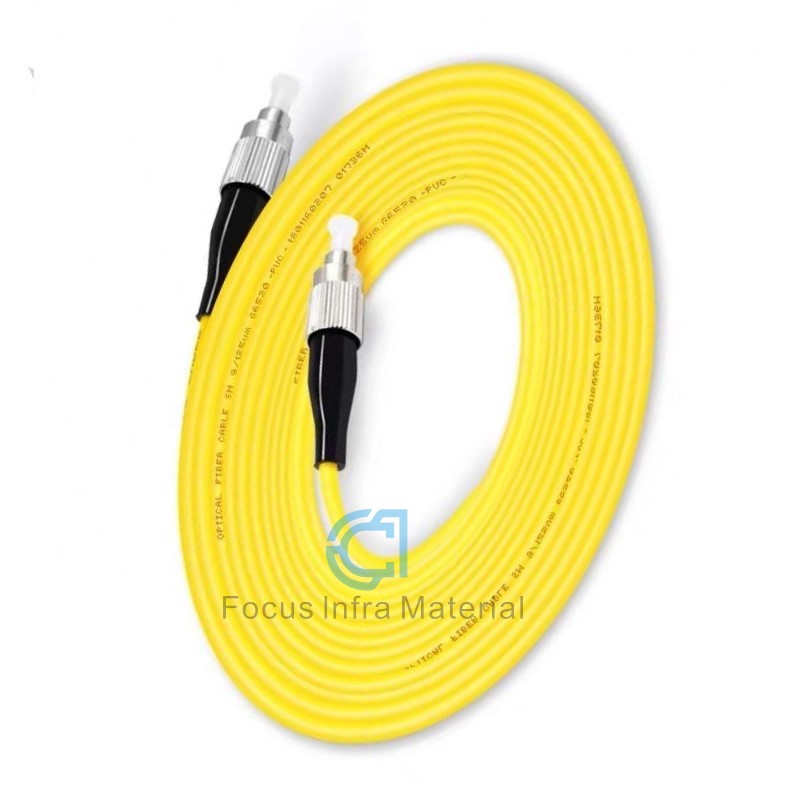

Our FC UPC to FC UPC SM SX Fiber Optic Jumper Cable is a simplex single-mode fiber cable featuring FC UPC connectors on both ends, engineered to deliver exceptional optical performance with minimal signal loss. The cable is constructed with 9/125μm single-mode (SM) fiber core, compliant with G.652D/G.657A1 standards, and adopts a simplex (SX) design that is ideal for point-to-point signal transmission in high-speed, long-distance communication scenarios. With ultra-precise ceramic ferrules, robust cable jacket, and strict manufacturing processes, this jumper cable is built to withstand harsh environmental conditions while maintaining consistent performance, making it a trusted choice for telecom operators, data center managers, and network integrators worldwide.

Key Features:

Superior Optical Performance: Boasts low insertion loss (≤0.2dB typical, ≤0.3dB maximum) and high return loss (≥50dB for UPC polish), ensuring minimal signal degradation and reliable data transmission. The ultra-precise ceramic ferrule alignment minimizes signal reflection, making it suitable for high-bandwidth applications such as 10Gbps, 40Gbps, and 100Gbps networks.

Premium Construction & Durability: The cable features a tight-buffered design with high-quality PVC or LSZH (low smoke zero halogen) jacket options, offering excellent flexibility, corrosion resistance, and flame retardancy (compliant with UL94 V-0). The FC UPC connectors are equipped with metal housings for enhanced durability, and the cable is RoHS compliant, ensuring environmental friendliness and safety for various installation environments.

Standard Compliance & Compatibility: Strictly adheres to international industry standards including TIA/EIA-604, IEC 61754, Telcordia GR-326-Core, and ISO 11801, ensuring full compatibility with all FC UPC-based fiber optic equipment such as fiber distribution boxes, optical splitters, fiber adapters, and terminal boxes. The 9/125μm single-mode fiber is compatible with G.652D and G.657A1 standards, supporting long-distance transmission up to tens of kilometers.

Flexible Customization: Available in multiple cable diameters (0.9mm, 2.0mm, 3.0mm) and standard lengths (1m, 2m, 3m, 5m, 10m), with custom lengths and jacket materials (PVC/LSZH) available upon request to meet specific project requirements. The simplex (SX) design is optimized for space-saving installation, ideal for tight spaces in data centers and telecom cabinets.

Easy Installation & Maintenance: The FC UPC connectors feature a secure screw-on design for stable connection, preventing accidental disconnection. Each jumper cable is individually tested for optical performance before delivery, and comes with dust caps to protect the ferrule from dust and damage, extending the product’s service life. The flexible cable design allows for easy routing and bending, reducing installation time and labor costs.

Wide Operating Temperature Range: Designed to operate reliably in extreme temperature conditions from -40℃ to +85℃, making it suitable for both indoor (data centers, office buildings) and outdoor (telecom towers, outdoor distribution boxes) applications, with excellent resistance to UV radiation and environmental wear.
