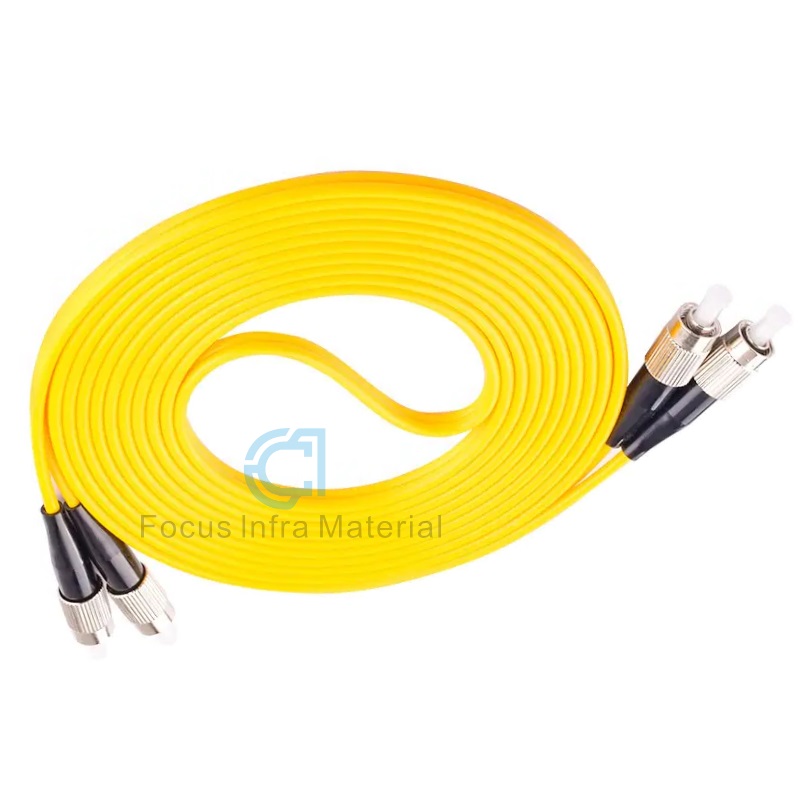

3M FC UPC to FC UPC SM DX Fiber Optical Jumper Cable for FTTx (Fiber to the x) Distribution Hubs
In the realm of single-mode fiber optics, the specific application often dictates the required component grade. While many connections are standard, some demand components built for greater distances and resilience. The FC UPC to FC UPC SM DX patch cord represents this tier of enhanced performance, designed for challenging long-haul and high-power applications. Chengdu Focus Infra Materials Company specializes in manufacturing precision fiber optic cables like the SM DX, providing the reliability your critical network infrastructure depends on.
Decoding the Specifications: What Does FC UPC SM DX Mean?
Understanding this product's name is key to understanding its value:
FC UPC: This defines the connector.
FC (Ferrule Connector): A threaded, rugged connector offering superior vibration resistance and a mechanically stable connection. It's a preferred choice for secure, "set-and-forget" installations in panels and demanding environments.
UPC (Ultra Physical Contact): The ferrule is polished with a curved end-face to minimize back reflection (typically -55 dB) and achieve very low insertion loss. It is identified by its blue boot.
SM (Single-Mode): This specifies the fiber type. Single-mode fiber has a small core that allows only one mode of light to propagate. It is the standard for long-distance communication and high-bandwidth applications, suffering minimal signal distortion over kilometers.
DX (A Note on Terminology): Unlike standardized codes like "SX" for short-wavelength, "DX" is often a manufacturer-specific or internal designation. In the context of single-mode fiber, it typically signifies a Performance Grade or Application-Specific cable. "DX" commonly implies:
1. Extended Reach / Long-Distance: Optimized for longer links where minimal signal loss is critical.
2. Durable / Extra Robust Construction: Perhaps featuring a stronger jacket or reinforced members for harsh environments.
3. High-Power Compatibility: Engineered with superior connectors to handle higher optical power levels without degradation.
At Chengdu Focus Infra, our SM DX patch cords are built to a superior performance grade, ensuring exceptional performance in critical long-haul and external plant applications.
Key Features：
1. Low Insertion Loss: The precision UPC polish ensures maximum light transfer from the transceiver into the fiber core, preserving signal strength.
2. Long-Distance Transmission: Single-mode fiber is inherently designed for long-haul links, making this patch cord ideal for connecting equipment that spans great distances, such as in telecom backbones or campus networks.
3. Superior Connection Stability: The threaded FC coupling mechanism prevents loosening from vibration, ensuring a stable optical link that will not degrade over time. This is crucial for reducing maintenance in hard-to-access panels.
4. Durability for Demanding Environments: The "DX" grade often correlates with a more robust cable construction, suitable for both indoor and mild outdoor use.
