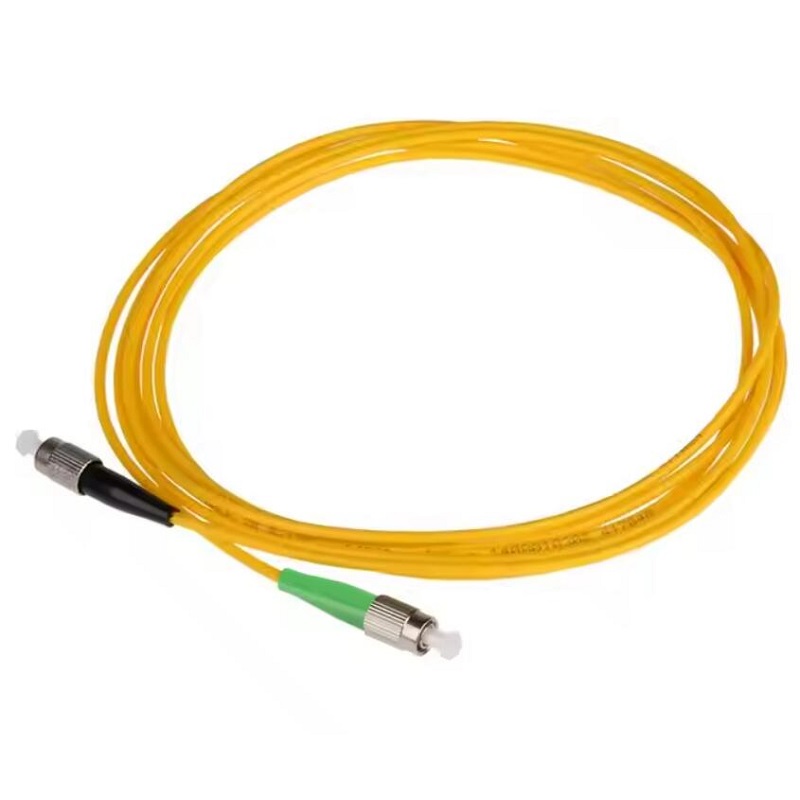

3m FC/UPC to FC/APC Singlemode Simplex Fiber Optic Patch Cord | High-Performance FTTH Jumper
Upgrade your network reliability with the 3-meter FC/UPC to FC/APC Singlemode Simplex Fiber Optic Patch Cord, specifically engineered by Focus Infra Materials for high-demand FTTH (Fiber to the Home) and telecommunication projects.
This premium fiber jumper features a hybrid configuration—combining the ultra-physical contact (UPC) and angled physical contact (APC) polishing—to ensure minimum back reflection and maximum signal integrity. Whether you are connecting OLTs, ONTs, or fiber distribution frames, this patch cord provides the precision required for modern high-speed broadband networks.
Key Features:
Low Insertion Loss & High Return Loss: Precision-ceramic ferrules ensure an insertion loss of ≤ 0.3 dB, maintaining stable data transmission even in complex FTTH environments.
High-Quality OS2 Singlemode Fiber: Built with standard 9/125μm G.652.D or G.657.A1 fiber, offering superior performance for long-distance 1310nm/1550nm wavelengths.

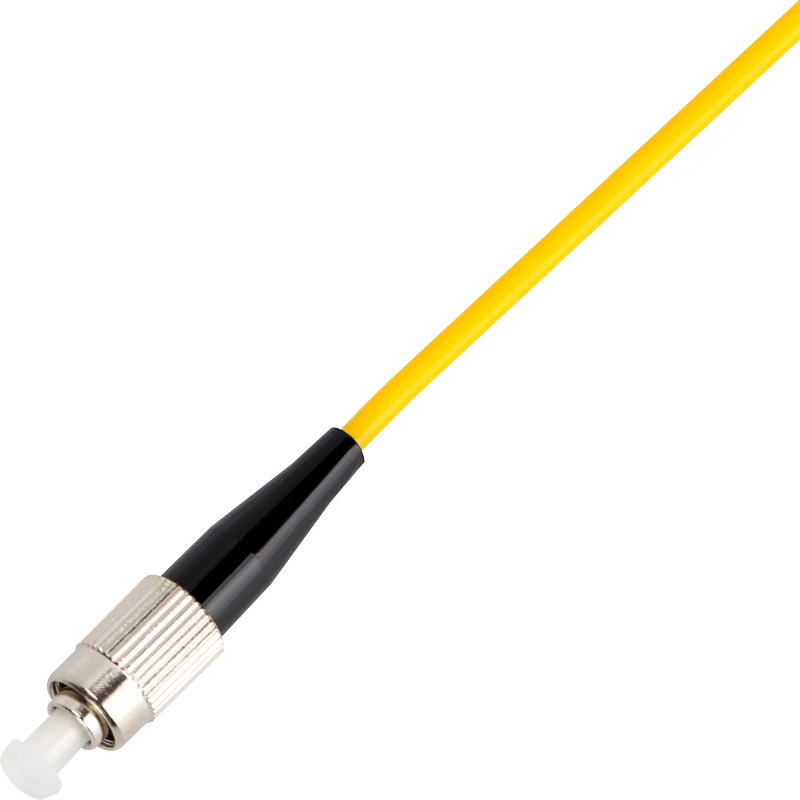

Hybrid FC/UPC to FC/APC Design: Ideal for bridging equipment with different connector requirements, reducing the need for additional adapters.
LSZH/PVC Jacket Options: The 2.0mm/3.0mm outer jacket is available in Flame Retardant (LSZH) materials, ensuring safety and compliance with international indoor cabling standards.
100% Optical Tested: Every patch cord undergoes rigorous factory testing for geometry and end-face quality before leaving our Chengdu facility.
Technical Specifications
| Feature | Specification |
| Connector Type | FC/UPC to FC/APC |
| Fiber Mode | Singlemode (OS2 9/125μm) |
| Fiber Count | Simplex (1 Strand) |
| Length | 3 Meters (Customizable) |
| Insertion Loss | $\le 0.3 dB$ |
| Return Loss (UPC/APC) | $\ge 50 dB$ / $\ge 60 dB$ |
| Operating Temperature | -40°C to +75°C |
| Jacket Diameter | 2.0mm or 3.0mm |
Applications:
FTTH (Fiber to the Home) & FTTX Projects: The essential link between the fiber wall outlet and the user terminal.
Telecommunication Networks: Reliable patching in Central Offices and Data Centers.
CATV & Fiber Sensing: High return loss (APC) prevents signal interference in video and sensitive testing equipment.
Local Area Networks (LAN): High-speed interconnects for enterprise-grade infrastructure.
