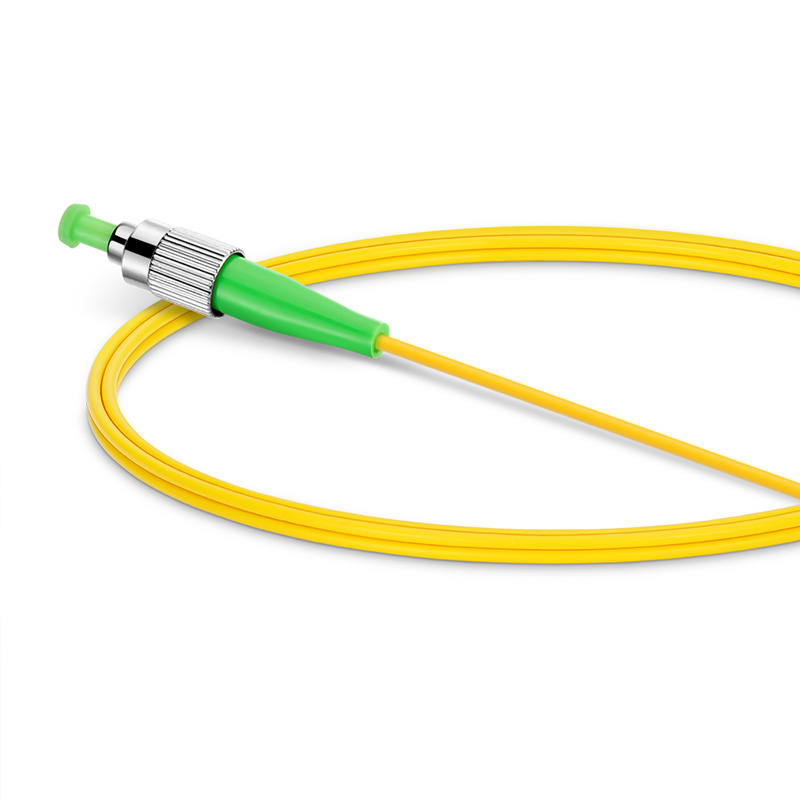

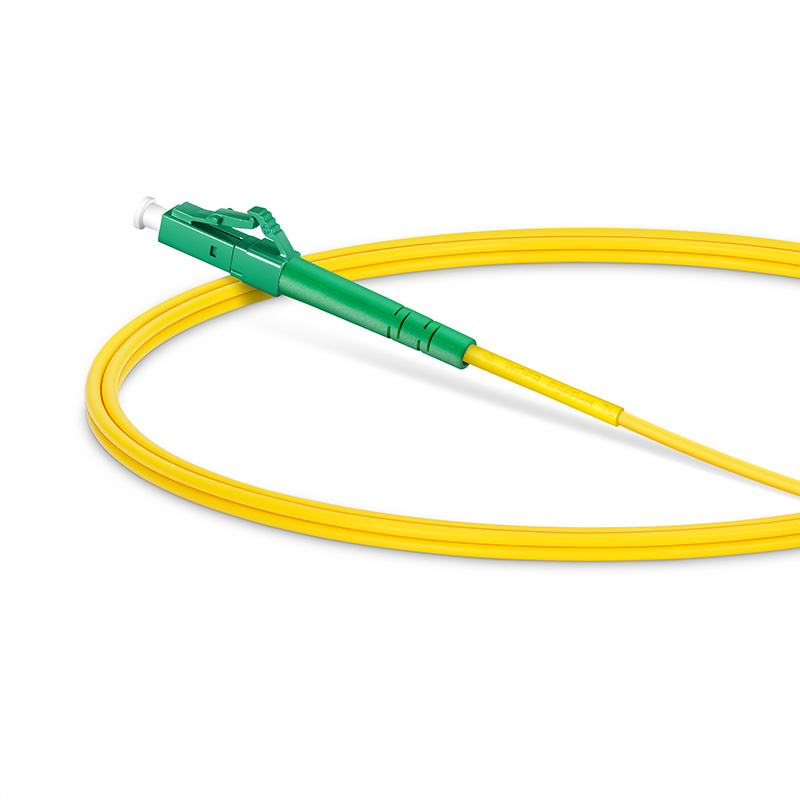

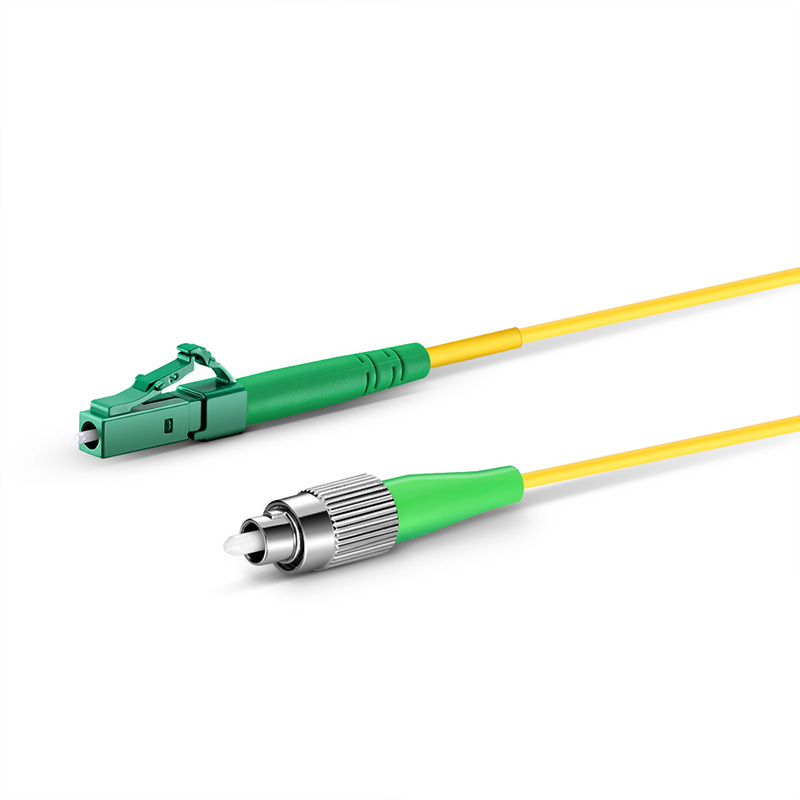

FTTx & PON Hybrid Jumper 3.0mm 3M FC APC to LC APC SM SX Patch Cord
In the deployment of Fiber-to-the-x (FTTx) and Passive Optical Networks (PON), connectivity is not one-size-fits-all. Network architecture often requires linking different types of equipment, which is where hybrid patch cords become critical. The FC APC to LC APC SM SX patch cord is a purpose-built solution designed to provide a seamless, high-performance link between central office equipment and the fiber distribution framework. At Chengdu Focus Infra Materials Company, we engineer these hybrid patch cords to the highest standards, ensuring the signal integrity and reliability that modern optical networks demand.
Applications:
Our FC APC to LC APC SM patch cords are essential in:
FTTH / FTTx Networks: Connecting the OLT equipment to the passive optical splitters.
PON (GPON, EPON) Architectures: Forming the low-reflection links between central office equipment and the outside plant.
CATV (Radio-over-Fiber) Systems: Where the analog signals are highly susceptible to interference from back reflection.
Telecom Central Offices: For interconnecting different panels and frames that use a mix of FC and LC interfaces.
| Parameter | Specification |
|---|
| Product Type | FC APC TO LC APC SM SX Fiber Optic Jumper Cable |
| Connector Type | LC UPC (Ultra Physical Contact) on both ends |
| Fiber Type | Single Mode (SM), 9/125μm, G.652D/G.657A1 compliant |
| Cable Design | Simplex (SX), tight-buffered |
| Jacket Material | PVC / LSZH (optional) |
| Cable Diameter | 0.9mm, 2.0mm, 3.0mm (optional) |
| Insertion Loss | ≤0.2dB (typical), ≤0.3dB (maximum) |
| Return Loss | ≥50dB (UPC) |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -45℃ ~ +85℃ |
| Compliance | RoHS, TIA/EIA-604, IEC 61754, Telcordia GR-326-Core |
| Length Options | 1m, 2m, 3m, 5m, 10m (custom lengths available) |
