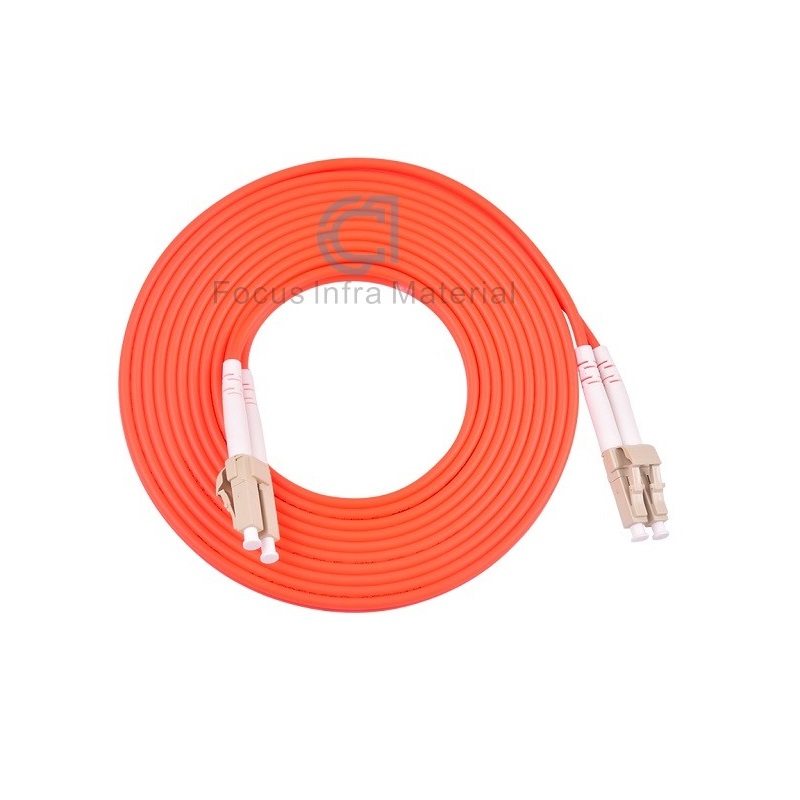

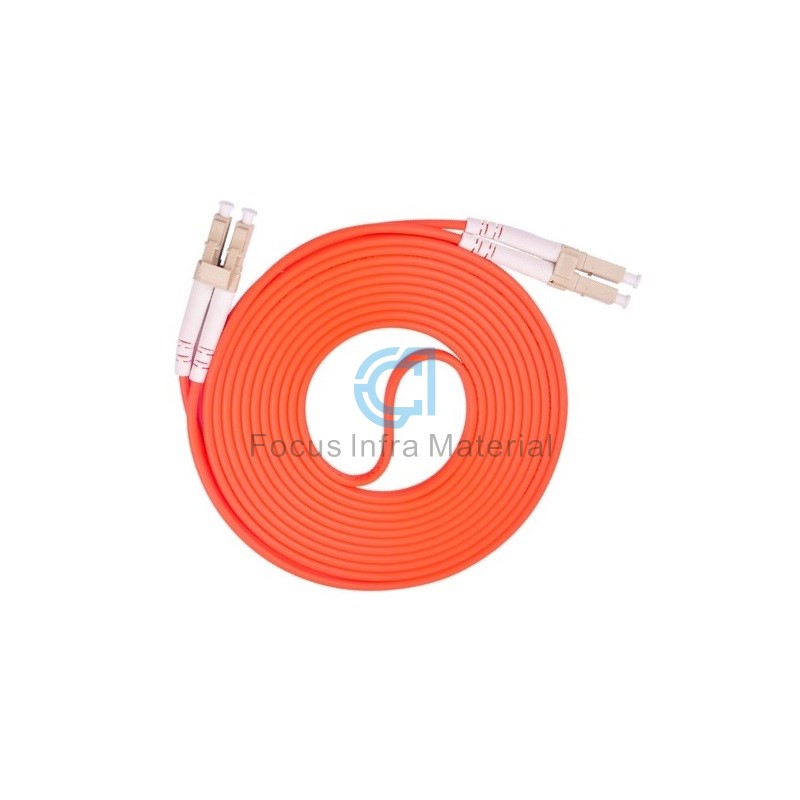

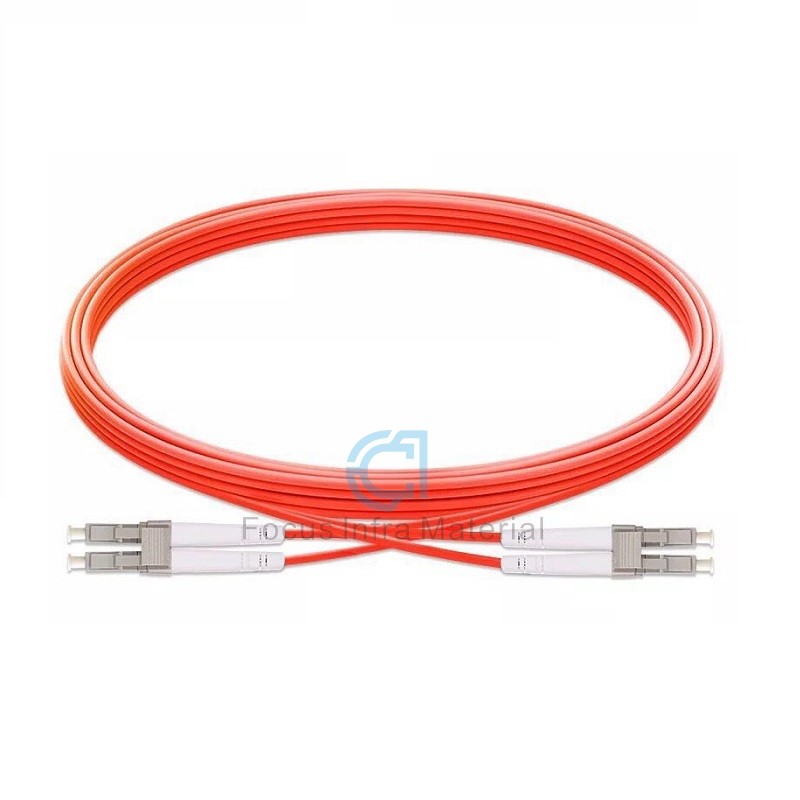

MultiMode Duplex LC UPC to LC UPC MM DX Fiber Optic Patch Cord for FTTH projects

176 Views

Product Name: LC UPC to LC UPC MM DX Fiber Optic Patch Cord
Outer Jacket: PVC, LSZH available
Cable Type: 9/125μm single-mode
Insertion Loss: ≤0.2 dB typical
Return Loss: ≥50 dB
Fiber Type: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Length: 0.5m-30m, customize available

Get a Quote

Category :

Fiber Optic Patchcord

Description

MultiMode Duplex LC UPC to LC UPC MM DX Fiber Optic Patch Cord for FTTH projects

Description:

Chengdu Focus Infra's LC UPC to LC UPC MM DX fiber optic patch cord delivers exceptional performance for multimode applications requiring superior bandwidth and reliability. This premium patch cord combines the space-efficient LC connector design with enhanced DX-grade multimode fiber, making it ideal for high-speed data centers, enterprise networks, and bandwidth-intensive applications.

Chengdu Focus Infra Materials Company is manufacturing a wide range of fiber optic patch cord to support buyers' demand. please contact us at yuki.hecy@cdfocusinfra.com for more details.

Technical Specifications

Connectors: LC UPC to LC UPC (Ultra Physical Contact, blue boots)

Fiber Type: Multimode (MM) OM3/OM4/OM5 options

Grade: DX (Enhanced Performance)

Insertion Loss: ≤0.2 dB typical

Return Loss: ≥50 dB

Operating Wavelength: 1310nm & 1550nm

Cable Type: 9/125μm single-mode

Temperature Range: -40°C to +75°C

Feature	DX Grade	Standard Grade
Insertion Loss	≤0.15 dB	≤0.20 dB
Return Loss	≥50 dB	≥45 dB
Temperature Range	-40°C to +85°C	-20°C to +70°C
Durability	>1000 cycles	>500 cycles
Bandwidth Consistency	Enhanced	Standard

3. Application：

1. CATV & RF Video Distribution

2. FTTx/PON Network Connections

3. Telecommunications Central Offices

4. Test & Measurement Equipment

5. Military/Aerospace Communications

6. Medical Imaging Systems

Fiber Optic Jumper Cable Types fiber optic patch cable

Fiber Optic Patch Cord Application

Chinese fiber optic patch cord factory

Chinese Fiber Optic Patch cord manufacture
