Robust Single-Mode Interconnect Solution FC UPC to ST UPC SM DX Fiber Optic Patch Cord

170 Views

Product Name: FC UPC to ST UPC SM DX Fiber Optic Patch Cord
Outer Jacket: PVC, LSZH available
Cable Type: 9/125μm single-mode
Insertion Loss: ≤0.2 dB typical
Return Loss: ≥50 dB
Fiber Type: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Length: 0.5m-30m, customize available

Get a Quote

Category :

Fiber Optic Patchcord

Description

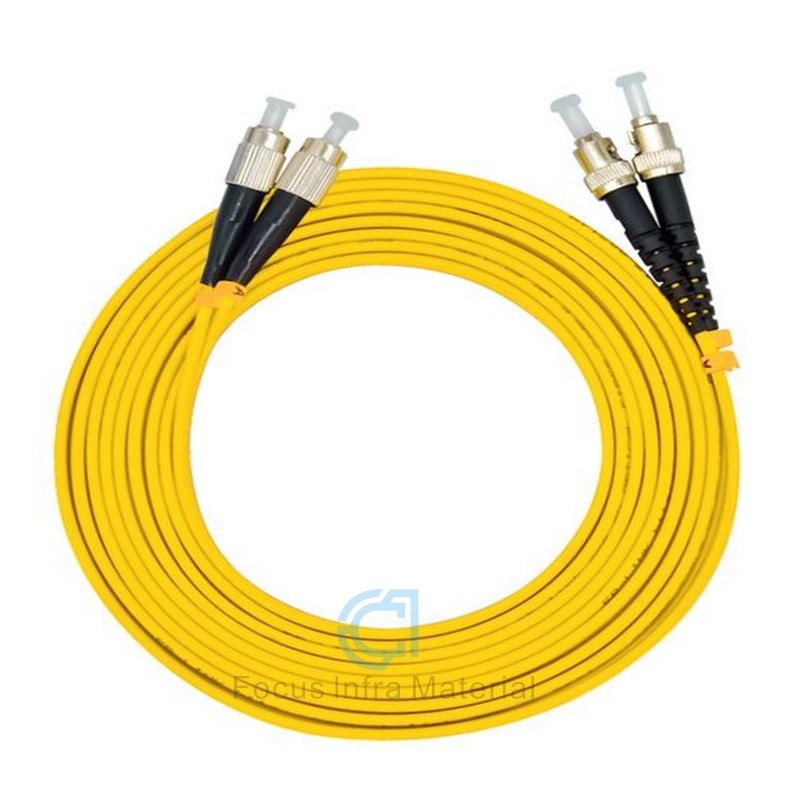

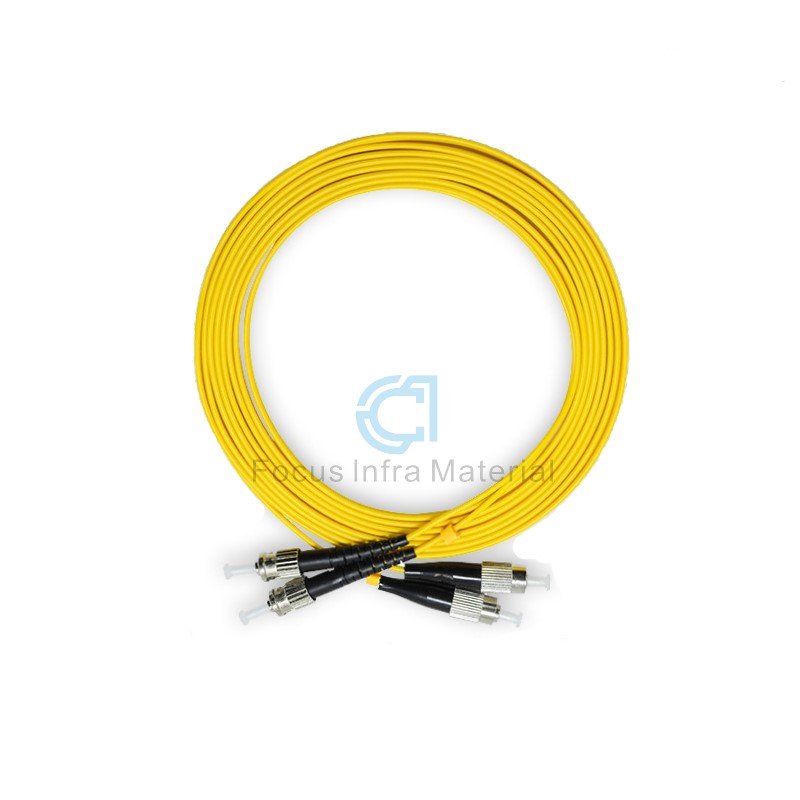

Robust Single-Mode Interconnect Solution FC UPC to ST UPC SM DX Fiber Optic Patch Cord

Description:

Chengdu Focus Infra's FC UPC to ST UPC SM DX fiber optic patch cord provides a reliable interconnection solution between equipment utilizing FC and ST connector interfaces. This hybrid patch cord combines the threaded coupling reliability of FC connectors with the bayonet-style convenience of ST connectors, making it ideal for network environments mixing different equipment types.

Chengdu Focus Infra Materials Company is manufacturing a wide range of fiber optic patch cord to support buyers' demand. please contact us at yuki.hecy@cdfocusinfra.com for more details.

Technical Specifications

Connectors: FC UPC (blue boot) to ST UPC (blue boot)

Fiber Type: Single-Mode (SM)

Grade: DX (Enhanced Performance)

Insertion Loss: ≤0.2 dB typical

Return Loss: ≥50 dB

Operating Wavelength: 1310nm & 1550nm

Cable Type: 9/125μm single-mode

Temperature Range: -40°C to +75°C

3. Application：

1. CATV & RF Video Distribution

2. FTTx/PON Network Connections

3. Telecommunications Central Offices

4. Test & Measurement Equipment

5. Military/Aerospace Communications

6. Medical Imaging Systems

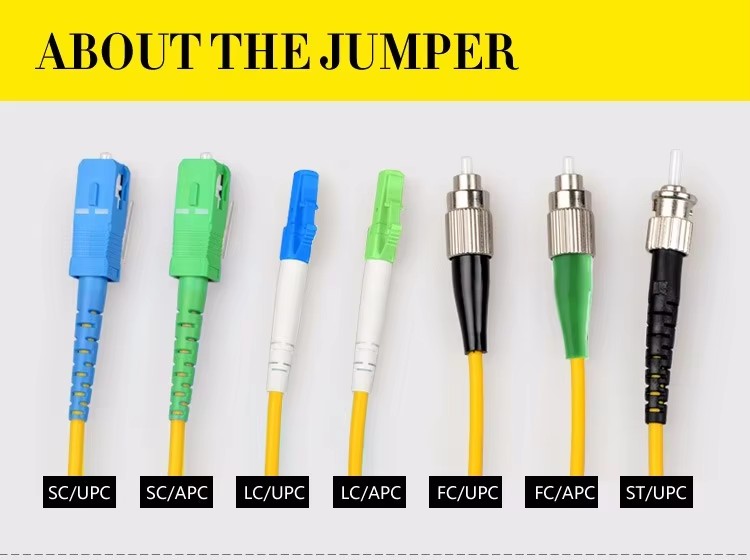

Fiber Optic Jumper Cable Types fiber optic patch cable

Fiber Optic Patch Cord Application

Chinese fiber optic patch cord factory

Chinese Fiber Optic Patch cord manufacture
