High-Performance Single-Mode Connectivity LC APC to LC APC SM SX Fiber Optic Patch Cord

176 Views

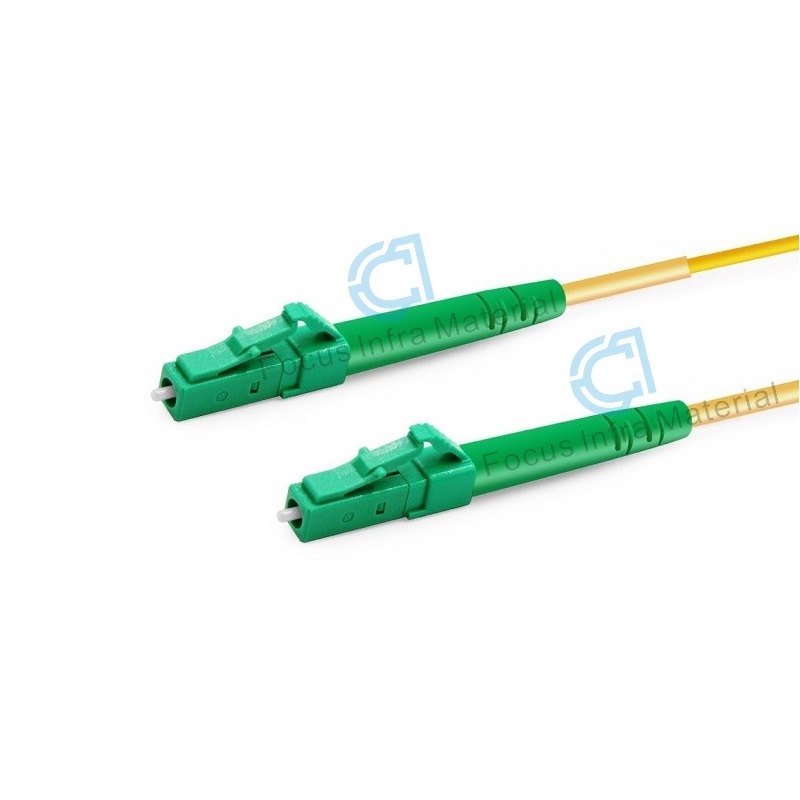

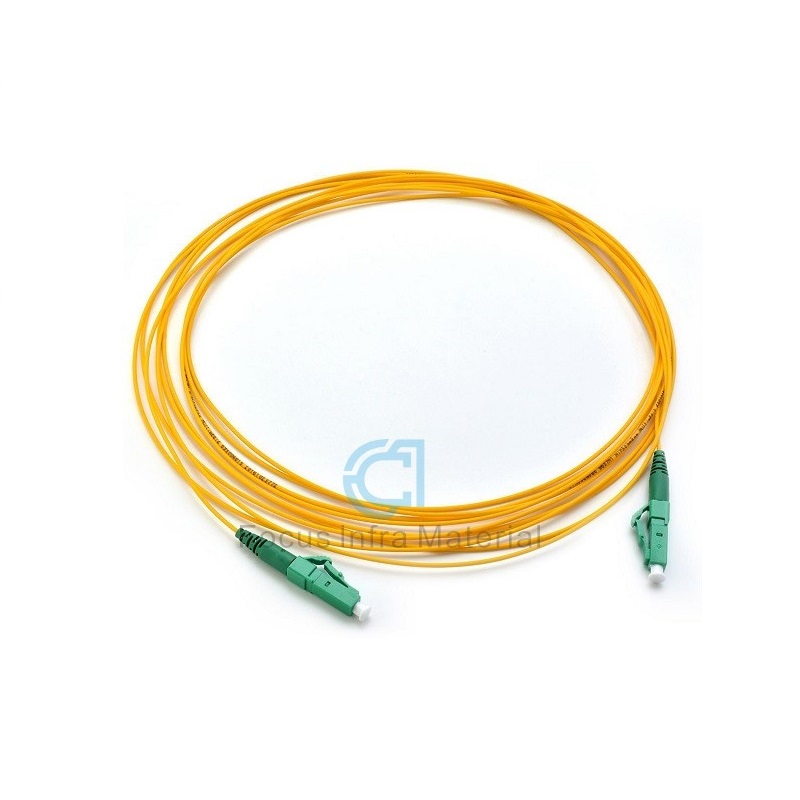

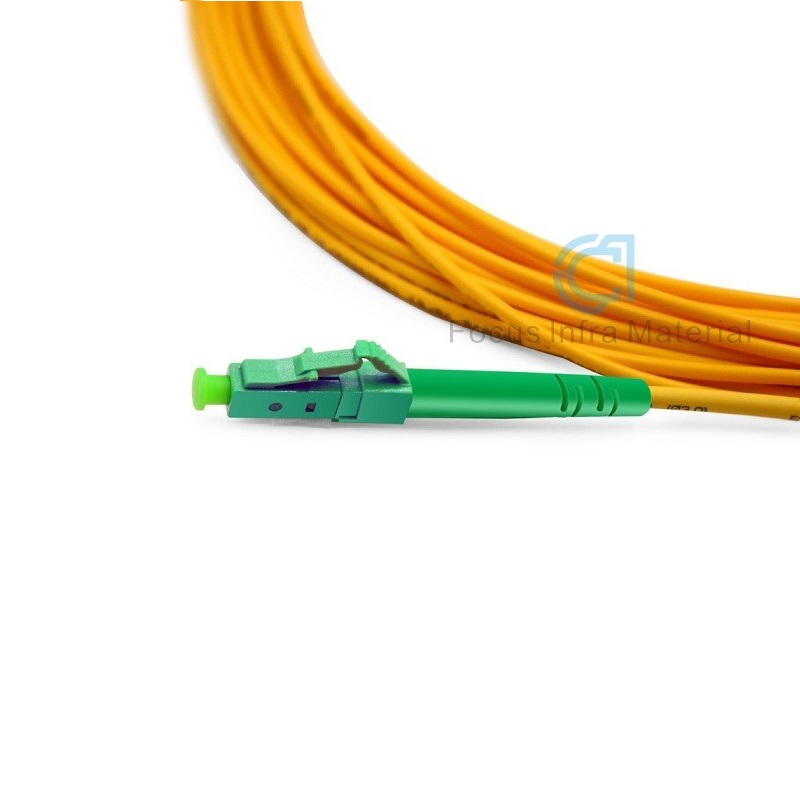

Product Name: LC APC to LC APC SM SX Fiber Optic Patch Cord
Outer Jacket: PVC, LSZH available
Cable Diameter: 0.9mm/ 2.0mm/ 3.0mm Cable
Fiber Type: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Length: 0.5m-30m, customize available

Get a Quote

Category :

Fiber Optic Patchcord

Description

High-Performance Single-Mode Connectivity LC APC to LC APC SM SX Fiber Optic Patch Cord

Description:

The LC APC to LC APC SM SX fiber optic patch cord delivers exceptional performance for single-mode applications requiring superior reflection characteristics. Featuring Angled Physical Contact (APC) polish on both ends, this patch cord ensures minimal back reflection, making it ideal for modern fiber optic networks where signal integrity is critical. The compact LC connector design enables high-density installations while maintaining reliable performance.

Chengdu Focus Infra Materials Company is manufacturing a wide range of fiber optic patch cord to support buyers' demand. please contact us at yuki.hecy@cdfocusinfra.com for more details.

Technical Specifications

1. Connectors: LC APC to LC APC (8° angled polish)

2. Fiber Type: Single-Mode (SM) 9/125μm

3. Application: SX (Short Wavelength Optimized)

4. Insertion Loss: ≤0.2 dB

5. Return Loss: ≥65 dB

6. Operating Wavelength: 1310nm & 1550nm

7. Cable Type: Single-mode OS1/OS2 compliant

8. Temperature Range: -20°C to +70°C

3. Application：

1. CATV & RF Video Distribution

2. FTTx/PON Network Connections

3. Telecommunications Central Offices

4. Test & Measurement Equipment

5. Military/Aerospace Communications

6. Medical Imaging Systems

Fiber Optic Jumper Cable Types fiber optic patch cable

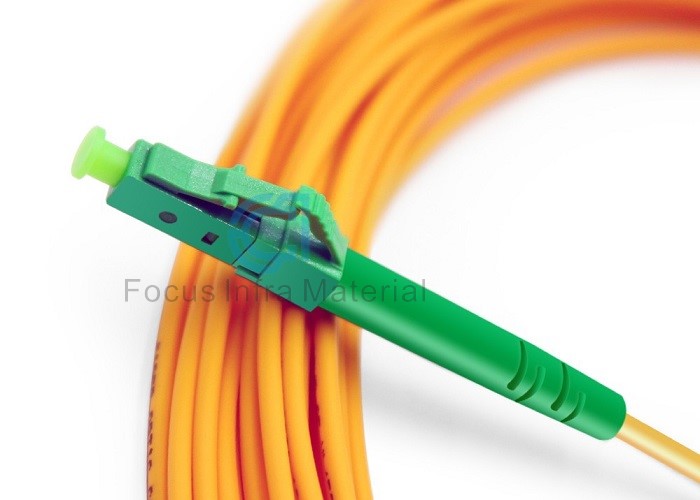

High-Performance Single-Mode Connectivity LC APC Pacth Corf Chinese fiber optic patch cord factory

Chinese Fiber Optic Patch cord manufacture
